Industrial Panel PCs

Intuitive Human Touch, Connected to the Cloud

Estone Technology’s various industrial-grade panel PCs are designed for healthcare, home automation, industrial control, and more. With resistive, capacitive, and IR touch technologies, the systems implement intuitive human interfaces and feature-rich cloud base applications (Wi-Fi or built-in 3G/4G), providing entertainment, data entry, device interaction, and smart computing. Available features include an optional black box and panel options from 7” to over 50”. LCD panels are Windows, Linux, Yocto, and Android supported.

7″ In-Wall Panel PC | PPC-4607
  • NXP i.MX8M Mini Application Processor
  • Standard 802.3af POE Gigabit Ethernet port
  • Smart codec with DSP supports Alexa Voice Service
  • Google Edge TPU for AI/ML option
  • True In-Wall Mounting fits standard 2-Gang Box
10″ PoE Panel PC | PPC-4310
  • 10.1” IPS LCD Panel PC
  • NXP i.MX8M Application Processor
  • Android 8.1, 9.0, Yocto Embedded Linux, Ubuntu OS
  • One Gigabit Ethernet port, support 802.3af/at PoE option
  • On-board WiFi module and Bluetooth BLE
7″ PoE Panel PC | PPC-4107
Drop-In Wall-Mount Frameless Panel PC - edge to edge
  • 7″ Power-over-Ethernet Panel PC
  • NXP i.MX6 Application Processor
  • Android 6.0.1, Debian Linux, and Yocto Embedded Linux OS
  • One Gigabit Ethernet port, support 802.3af PoE option
  • On-Board WiFi Module and Bluetooth BLE
21″ Industrial Panel PC | PPC-6721
21.5" Large Panel PC
  • 21.5” Fanless Industrial Panel PC
  • Intel Celeron J1900 processor
  • Windows, Linux OS
  • Up to Two Gigabit Ethernet ports
  • Serial Ports and USB Port Expansion

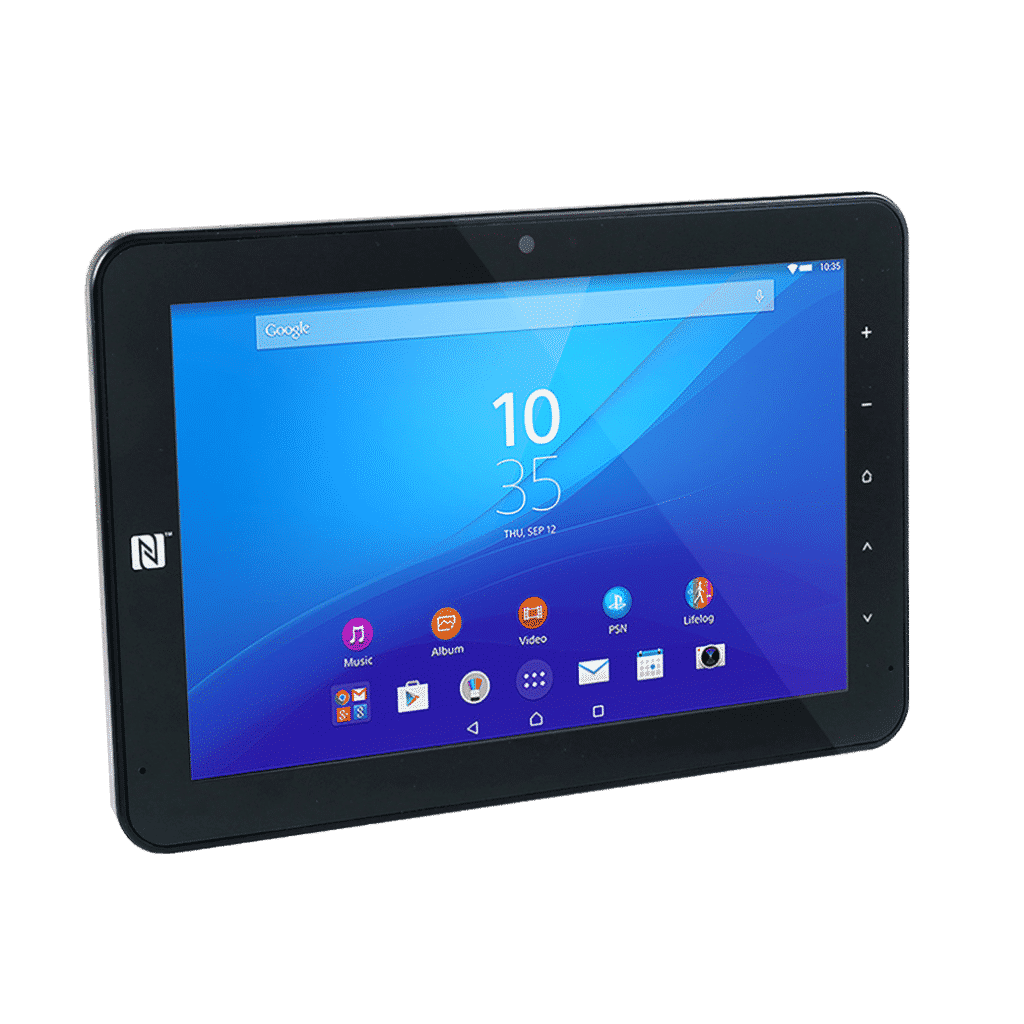

10″ Industrial Panel PC | PPC-4210
  • 10.1” Industrial Panel PC
  • NXP i.MX6 Application Processor
  • Android 6.0.1, Debian Linux, and Yocto Embedded Linux OS
  • RS-232, RS-422/485 and CAN Bus port options
  • Two Gigabit Ethernet Ports, One Supports 802.3af PoE Option
  • NFC, Camera, Customizable Touch Buttons, and Light Sensor Options
7″ Industrial Panel PC | PPC-6607

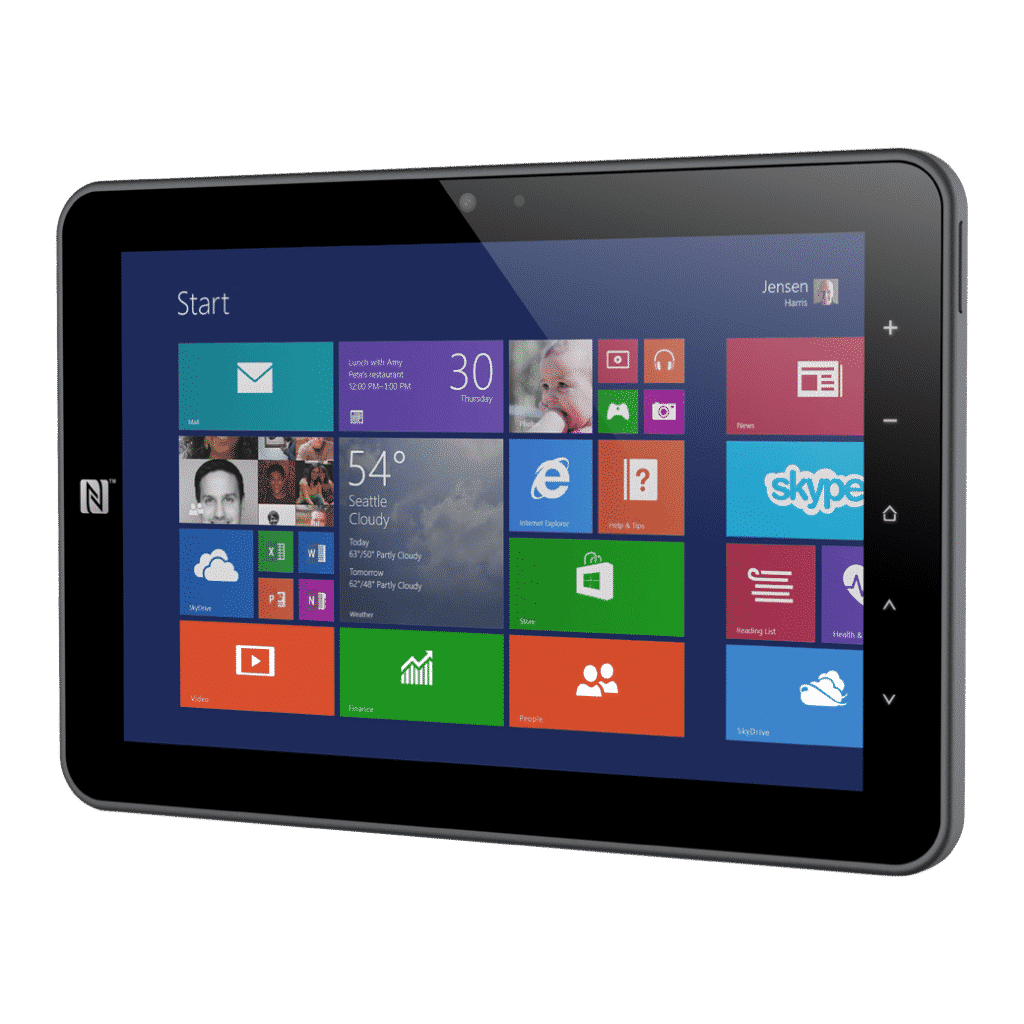

ppc-6607 industrial panel pc front side view
  • 7” Industrial Panel PC
  • Intel Atom x5-Z8350 Cherry Trail Processor
  • Windows 10, Android, and Linux Operating System
  • Ethernet port support 802.3af POE option and On-board WiFi/BT
  • RS-232/485 and Customizable I/O for Communication
  • Dual-color GPIO Controllable LED Light-bar Options
10″ PoE Panel PC | PPC-6610
ppc-6610 industrial panel pc side view
  • 10.1″ PoE Industrial Panel PC
  • Intel Atom x5-Z8350 Cherry Trail processor
  • Windows 10, Android, and Linux OS
  • Ethernet port support 802.3af POE option and On-board WiFi/BT
  • RS-232/485 and customizable I/O for communication
10″ Industrial Panel PC | PPC-6710
ppc-6710 industrial panel pc front side view
  • 10.1″ IPS Industrial Panel PC
  • Intel Celeron N3350 or N3450 Apollo Lake Processor
  • Windows 10 and Linux OS
  • Open Frame Slim Tablet Replacement Design
  • One Gigabit Ethernet Port and m.2 WiFi/BT Support

Industrial Panel PCs

Industrial panel PCs are designed specifically for use in industrial settings. Constructed from industrial-grade components, these PCs are built for durability to ensure reliable operation in harsh or extreme field conditions. Industrial panel PCs are also outfitted with legacy ports so they can be used with legacy machinery and equipment. Expansion slots also add versatility, ensuring that operators can use industrial panel PCs in almost any environment.

While consumer-grade PCs may fail after a couple years of heavy use, industrial panel PCs are designed with a much longer product life cycle —often 5 to 10 years. This long product availability ensures that manufacturers are not rushed to migrate to the next generation of technology, which often requires new certifications and qualifications, as well as software upgrades or redevelopment.

Benefits of Industrial Panel PCs and Touch Screen PCs

Industrial panel PCs and touch panel computers offer multiple advantages over commonly available consumer-grade technologies:

  • Wide range of power inputs. The power input of Industrial panel PCs can be designed to adapt to wide variety of application environments, like 12V DC, 24V DC, 48V AC, 9-36V DC, Power-over-Ethernet (PoE), etc. This makes it easier to install in different industrial setups. PoE minimizes the need for electrical cabling, which speeds up installation.
  • Flexible operating systems. Industrial panel PCs can run on Microsoft Windows IoT, Ubuntu Linux, Yocto Embedded Linux, and other operating systems that with Long-Term Support.
  • International certification. The designs of the systems strictly follow safety standards, certification requirements, compliance standards, and IP65 rating protections when specified.
  • Longevity in extreme conditions. Industrial panel PCs operate optimally within a broad temperature range, including extreme hot or cold temperatures. The housing design and selected components provide consistent durability in harsh environments, including exposure to dust, water, oil, and vibration.
  • Mounting options. Several different mounting options are available for industrial panel PCs, including panels, in-wall, wall, and VESA
  • Optimized hardware. Many industrial panel PC systems have fanless cooling to reduce dust and debris intake. They are highly customizable, including optional dual Ethernet ports, RS232, RS422/285, CAN bus ports, and those configurations to meet the requirements of Human Machine Interfaces (HMI).

Industrial Panel PC and HMI Applications

Industrial panel PCs and touch panel computers can be customized for almost any application areas. We can build devices for a wide variety of workplaces, environmental conditions, and industries. Some of the most popular applications for industrial panel PCs include industrial machinery, building automation, HAVC control, vending machine, and smart HMI systems.

We have experience working on the following projects to best suit the unique needs of different industrial sectors:

  • Building and factory automation systems that make industrial production safer and more consistent, oversee building and equipment conditions, and regulate cost-effective work processes
  • Human Machine Interfaces that allow for easy communication between machinery and human operators from set touchpoints, command centers, or remote apps
  • Industrial control systems for centralized control of manufacturing and facility machinery
  • Medical devices that handle complex technological functions
  • Point-of-Information kiosks for retail consumers, facility visitors, travelers, and more

  • For industrial, agricultural, and automobile control applications
  • Optional black box computer command center (control lighting, motor, devices etc.)
  • Open OS platform (Linux, Android, others)
  • Industrial data bus (CAN, NMEA) support
  • Cloud connectivity (via smart phone or built-in 3G/4G)
  • Smart phone app and control
  • Remote computer performance monitoring
  • Rugged, waterproof, dirt proof, impact proof designs

Choose Estone Technology for PC Manufacturing

At Estone Technology, we specialize in designing, developing, and manufacturing robust industrial panel PCs. Our team has over 20 years of combined experience creating and improving industrial PCs, and we consistently implement the latest available technologies to provide maximum service life and relevance. We are an international original equipment manufacturer (OEM) and original design manufacturer (ODM) with a global reputation for creating durable high-performance computer equipment.

Contact us today to learn more about our capabilities or to get started on your unique project.
