    • 10″ PoE Panel PC | PPC-4310

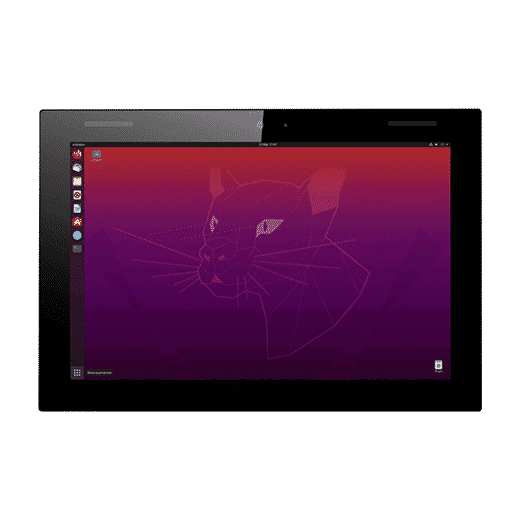

    The PPC-4310 is an all-in-one industrial POE touch panel PC with a WUXGA 1920 x 1200 touch screen. The system equips NXP’s i.MX8M Quad Core ARM processor with a guaranteed 10-year lifespan. Edge to edge glass front panel is IP65 rated. The Gigabit Ethernet PoE (Power over Ethernet) option makes the PC perfect for industrial control, building automation, HMI, and interactive kiosk computer applications. PoE tablet replacement requires a long product life cycle.

    Key Features

    • 10.1” IPS LCD Panel with Projected Capacitive Touch Screen
    • NXP i.MX8M Application Processor with Long Life Cycle Support
    • Android 8.1, 9.0, Yocto Embedded Linux, Ubuntu Operating Systems
    • IEEE 802.3af PoE Gigabit Ethernet port, Second PCIe GbE Option
    • On-board WiFi/BT, RS-232/485 and GPIO ports
    • Smart Codec with Dual-core DSP for Digital MICs and Voice Control
    • Camera, Digital MICs, and Light Sensor Options
    Inquiries
    Data Sheet
    10" Frameless Touch Panel - i.MX8M

    Frameless Touch Panel Design

    The PPC-4310 features an IP65 rated front touch panel with 3mm tempered glass. The edge to edge frameless front panel is also a great alternative to traditional open frame PCs for integration into existing industrial machines, control cabinets, kiosks, and cutting-edge full glass touch panel industrial design.

    10" PoE Panel PC IO | PPC-4310 - i.MX8M

    Optimized for Industrial Panel Applications

    The embedded touch panel PC is built with NXP’s i.MX8M application processors, which have a guaranteed more-than-10-years lifespan. It has interfaces like USB, RS-485, RS-232, dual Ethernet, and more, and is optimized for industrial HMI and control applications.

    ODM Embedded Board | EMB-2230 - POE Module

    Gigabit Power over Ethernet

    This 10.1” industrial-grade PoE touch panel PC provides Power over Ethernet (PoE) power input over a standard network cable. It enables installation and large roll-out without modification of existing Ethernet cabling infrastructure and does not require a dedicated power source

    10" PoE Panel PC Linux and Android - i.MX8M

    Linux, Android and Qt Software Support

    Estone’s latest i.MX8M embedded computer platform supports Yocto Embedded Linux with Kernel version 4.9, 4.14, Qt, Wayland, Ubuntu as well as Android 8.1 Oreo and Android 9 Pie. Comprehensive software support guides for building from source are available on our Estone Wiki, which includes the support of Amazon AVS (Alexa Voice Service) Device SDK for voice control applications with this platform.

    ODM Embedded Board | EMB-2238 – Dual NIC Module

    Designed for ODM and Customization

    The heart of this PoE touch panel PC is based on Estone’s EMB-2238 Pico-ITX embedded board with modular power and I/O design. It allows a selection of LCD panels with different brightness, resolution, and display interfaces within the same shared platform. The power/IO module can be customized to take different form factors of connectors and power inputs in the same enclosure

    Yocto Embedded Linux Video Demo

    The video demo shows a 10.1″ PPC-4310 i.MX8M POE Panel PC running Yocto Linux with Weston Wayland compositor. It includes demos of Qt WebEngine Quick Nano Browser, Qt 3D, OpenGL, and full HD video playback.

    *Specifications are representative. Specific product technology may be different than indicated.

    ProcessorNXP i.MX 8MQuad, 4x ARM Cortex-A53 @ 1.5GHz
    PlatformARM Cortex-A53
    System MemoryOnboard LPDDR4, up to 4GB
    Ethernet1 x 10/100/1000 Mbps GbE with POE option, second PCIe GbE (via optional add-on card)
    Wireless1x WiFi/Bluetooth USB module, 802.11 b/g/n + Bluetooth v4.0
    StorageOnboard iNAND flash (8GB default), 1x micro SD slot, 265K EEPROM with write protect control
    CoolingFanless
    Display InterfaceLVDS
    I/O Ports1 x RS-232/RS-485 and 2 x GPIO via terminal block 1 x RS-232, GPIOs,SPI, 8ch DMIC, I2C via internal header 2 x USB 2.0 Type A 2 x USB 2.0 pin header 1x USB Type C 3.0 OTG
    SpeakerOptional 1 x mono Class D speaker, up to 2W(4Ω) or stereo line-out
    Watchdog timerBuilt-in
    RTCSupport RTC backup battery
    Input Voltage5V DC or POE, 9V – 36V DC (via an optional module
    Display Type10.1” TFT active matrix LED backlight
    Display Resolution1920 x 1200
    Luminance400 cd/m2
    Contrast Ratio1300
    Viewing Angle85 (Left), 85 (Right), 85 (Top), 85 (Bottom)
    Backlight Lifetime25,000 Hr (Typical)
    Touch TypeProjected capacitive touch screen
    Touch ControllerI2C
    Enclosure MaterialAluminum + Steel
    Enclosure ColorBlack, White front panel option
    Mounting OptionPanel mount or 75 x 75mm VESA mount
    Operating Temperature0 ~ 60°C (32 ~ 140°F)
    Storage Temperature-40 ~ 85° C (-40 ~ 185° F)
    Operating Humidity10 ~ 95% @ 40°C (Non-Condensing)
    ProtectionFront panel IP65 compliant, 3mm Tempered Glass
    Dimensions256 x 173 x 39.5 mm (10.7” x 6.81” x 1.56”)
    OS SupportAndroid 8.1, 9.0, Yocto Embedded Linux 4.x kernel, Ubuntu
