• MITX-6770

    The MITX-6770 is an embedded board powered by the Intel® Celeron J1900 Quad-Core Processor. This thin Mini-ITX board is designed to meet the increasing demand for a variety of network connectivity, higher network performance, flexible storage options, and improved security of the Internet of things (IoT). The board features dual Intel Gigabit Ethernet ports, Power over Ethernet (PoE) option, on-board Trusted Platform Module (TPM) security feature, 7.1 HD audio, and support of two mSATA slots for storage redundancy.

    Key Features

    • Intel Celeron J1900 Bay Trail 2.42 GHz
    • Dual Intel Intel I210/I211 Gigabit Ethernet Ports
    • Build-in Ethernet port pin-header ready for POE (Power over Ethernet) setup
    • HDMI + VGA and LVDS/HDMI/DP/eDP add-on interface card options
    • Dual mSATA SSD support with easy jumper selection
    Inquiries
    Data Sheet

    Small Form Factor

    For applications such as a digital airport information display, our Mini-ITX boards at Habey USA can easily fit behind a monitor, under a desk, and inside a wall or ceiling.

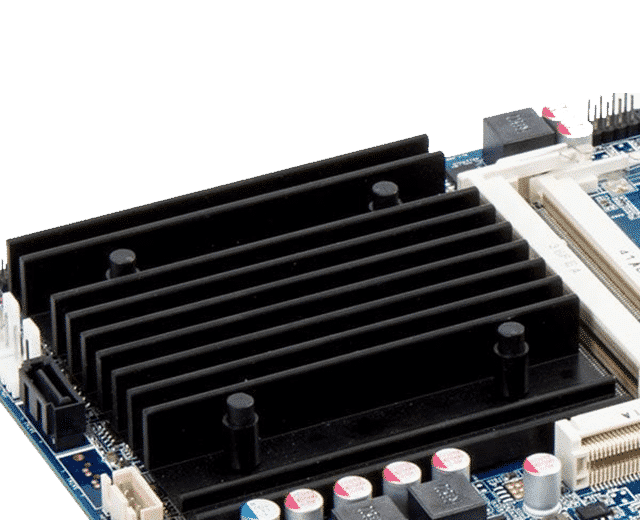

    Fanless

    In addition to a small footprint, our Mini-ITX boards are designed to be fanless utilizing the highly efficient heat dissipating designs, perfect for 24/7 operation.

    Connectivity

    This system offers a dual full-size mini-PCIe expansion slots for WiFi and other expansion options.

    Wireless Connectivity

    The MITX-6770 has an additional SIM slot for your 3G, 4G, and LTE connectivity.

    High Definition

    With the Intel HD Graphics, resolutions from 1920×1200 from the systems HDMI & VGA port, this system produces perfect High Definition video and images.

    *Specifications are representative. Specific product technology may be different than indicated.

    ModelMITX-6770
    Essentials
    Platform CodenameBay Trail
    Form Factormini-ITX
    ProcessorIntel Celeron J1900 2.42 GHz
    ChipsetSoC
    BIOSAMI
    System Memory2x 204-Pin DDR3L SO-DIMM, up to 4GB each
    Ethernet2x RJ45 ,Intel I210/I211, GbE x2, LAN1 has pin-header for optional POE module
    Storage2x SATA 3Gb/s or 2x mSATA (1x full-size + 1x half-size mini-PCIe), jumper selectable
    Expansion1x half-size mini-PCIe + USB/mSATA, 1x full size mini-PCIe x1 slot for USB or mSATA only, 1x PCIe x1 slot
    Power12V DC 2.5mm power jack
    Graphic
    Graphic ControllerIntel HD Graphics
    Display Interface1x VGA, 1x HDMI, optional second HDMI via add-on card
    LCD Interface1x dual/single channel 18/24-bit LVDS via optional add-on card
    Display ResolutionVGA – 1920x 1200, HDMI – 1920x 1200, LVDS – 1920x 1200
    Dual DisplayDual independent display

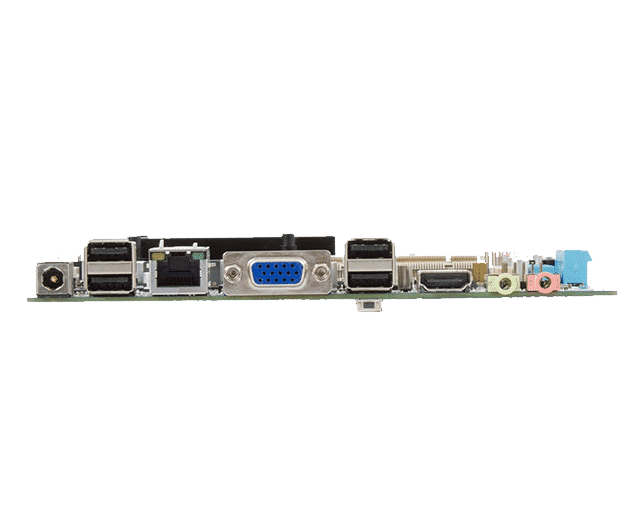

    I/O
    Serial Port2x RS-232 header
    Parallel Port1x LPT
    USB1x USB2.0, 1x USB3.0, 2x USB2.0 header
    Digital I/O8-bit GPIO, Infineon SL89635 TPM 1.2 module build-in
    AudioRealtek ALC892, Line-out and MIC-in jack, 7.1 audio header, amplified speaker out
    Advanced Technologies
    Wake On LANYes
    Watchdog TimerProgrammable timer system reset
    Features and OptionsDual Intel Ethernet ports, dual mSATA support, dual HDMI option, POE (Power over Ethernet) ready, Trusted Platform Module (TPM 1.2) build-in, Intel embedded processor, long product life cycle
    Mechanical & Environmental
    Operating Temperature0 ~ 60° C (32 ~ 140° F)
    Storage Temperature-40 ~ 85° C (-40 ~ 185° F)
    Operating Humidity5% ~ 95%, 40ºC, non-condensing
    Dimensions170 x 170 mm (6.7″ x 6.7″)
