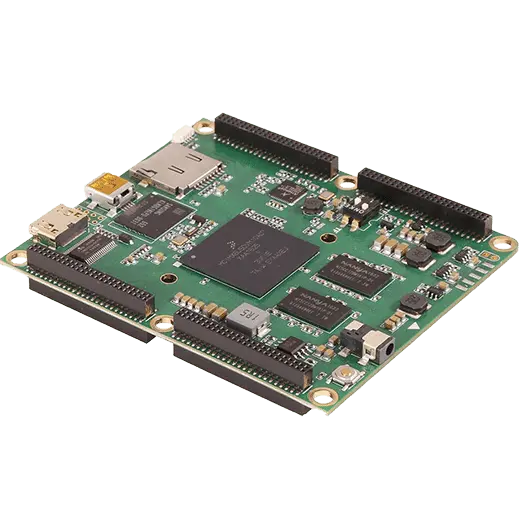

• EMB-1200

    NXP i.MX6 Ultra Small Form Factor Modular ARM Cortex-A7 Embedded Board with 3D Expansion.

    The EMB-1200 is an ultra-small form factor embedded board based on Freescale i.MX6 Cortex A9 ARM platform. It has either Freescale i.MX6DL or i.MX6Q processor with onboard DDR3 memory and iNAND flash storage. The I/O interfaces include HDMI, USB2.0, micro SD slot, serial console, OTG, and 200 pin headers on the top and bottom to bring out all the display ports, camera ports, CAN, serial, I2C, SPI, SDIO and more i.MX6 I/O resources.

    Key Features

    • NXP i.MX 6 DL or Quad Cortex-A9 ARM processor
    • Open modular design with 3D expansion
    • Small footprint and low profile to fit in 2-gang electrical box
    • 200-pin top and bottom headers to bring out Flexible I/O
    • SOM like single board computer
    • Fully support Yocto embedded Linux and Qt
    Inquiries
    Data Sheet

    *Specifications are representative. Specific product technology may be different than indicated.

    ModelEMB-1200
    PlatformFreescale i.MX6
    Form FactorHIoTX
    ProcessorFreescale i.MX6DL (default) or i.MX6Q at 1GHz
    System Memory64-bit 1GB DDR3 SDRAM 400MHz(i.MX6DL) or 528MHz(i.MX6Q)
    EthernetOnboard Gigabit Ethernet PHY
    Storage4GB iNand Flash,up to 32GB
    Graphic ControllerVivante GC 880 + Vivante GC 320 (i.MX6DL) Vivante GC 2000 + Vivante GC 355 + Vivante GC 320 (i.MX6Q)
    Display Interface1x mini HDMI
    Display ResolutionHDMI – 1920 x 1080
    SD Card Socket1 x micro SD Socket (does not support hot plug)
    USB2 x 4-pin 2.0 mm pitch USB 2.0 pin headers
    Boot Switch1 x 2-bit DIP switch for iNAND and micro SD boot selection
    Power Switch1 x on-board power switch
    Console Port1 x 4-pin TTL serial port
    Power Input1 x 5V/2A DC power input, 2.5mm OD, 0.7mm ID
    OTG1 x OTG device only
    Expansion4x 50 pin with size of 1.27mm  pitch top and bottom for I/O expansion. These 200-pin top and bottom female headers offers 24 bit Parallel Display Port, dual channel 24 bit LVDS, MIPI DSI up to 24 bit, MIPI CSI for up to 4 lanes, 8 bit parallel  camera interface, GbE PHY, x1 PCIe PHY, 2x USB2.0, I2S audio codec output with Line-out/detect, Line-out, Mic-in/detect, speaker out (1W), 4 bit SDIO, and IOMUX outputs: up to 5x UART, 2x CAN, 3x SPI, 3x I2C, 34 configurable GPIO
    Operating Temperature-10 ~ 50° C (14 ~ 122° F), 50° C – 75° C option available
    Storage Temperature-40 °C to 80 °C (-40°F-176°F)
    Operating Humidity5% to 95% Relative Humidity Non-Condensing
    Dimensions85 x 72 mm (3.34″ x 2.84″)
