10.1″ Rugged Android Tablet PC | MS-100A

The 10.1” rugged tablet is designed for professionals across a wide range of demanding industries, including field services, logistics, construction, retail, and manufacturing. Featuring a vibrant IPS LCD display with 1920 x 1200 resolution, it ensures sharp, clear visuals even under direct sunlight. Powered by the Qualcomm SDM660 Octa-core processor, the tablet delivers robust performance, making multitasking and field applications seamless. Engineered for durability, it is equipped with IP67-rated water and dust protection and MIL-STD-810G certification for drop and shock resistance, ensuring reliable performance in harsh environments. With a long-lasting 12-hour battery, the tablet provides uninterrupted operation throughout the workday. The dock pogo connector allows for easy integration with optional peripherals, while the expansion bay supports modules like NFC, RFID, Smart Card Reader, Barcode Reader, and Rail Magnetic Stripe Reader, offering tailored solutions to meet the specific needs of industries such as warehousing, public safety, and transportation.

Key Features

10.1″ IPS LCD Display (1920 x 1200 Resolution)
Qualcomm SDM660, Octa-core Qualcomm® Kryo™ 260
Android 10
IP67 Water & Dust Protection
4ft Drop / Shock Protection (MIL-STD-810G)
Wi-Fi (2.4GHz & 5GHz), Bluetooth 5.0, GPS
Long Lasting Battery (12 Hours Standard Operation)
Dock Pogo Connector Supports Optional Peripherals
Expansion Modules: NFC Module, RFID Module, Smart Card Reader Module, Barcode Reader, Rail Magnetic Stripe Reader (can support up to 4 modules)

Inquiries Data Sheet

Unmatched Performance with Qualcomm SDM660 Processor

The MS-100A Rugged Tablet PC is built to excel in any environment, offering a range of powerful processors to meet your specific needs. Choose between the Qualcomm SDM660 Octa-core processor for fast, efficient performance, the RockChip RK3588 with its Quad-core ARM Cortex-A76 and Quad-core ARM Cortex-A55 setup for enhanced power, or the Intel Elkhart Lake Pentium® N6415 processor for demanding industrial applications. Whether it’s for field data collection, logistics management, or real-time communication, the MS-100A delivers. Its 10.1″ high-resolution IPS touchscreen with 1920 x 1200 resolution provides crystal-clear visuals and a responsive interface, making it easy to access and analyze data. With 4GB LPDDR4 RAM and 64GB eMMC storage (upgradable to 6GB RAM and 128GB storage), this tablet is built to handle a wide range of tasks with ease.

Rugged Design for Extreme Conditions

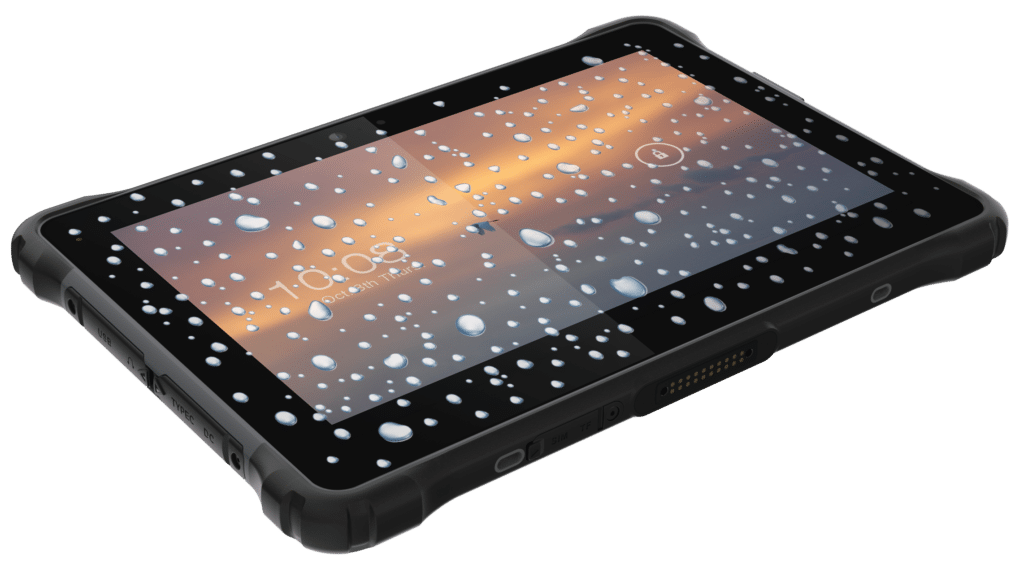

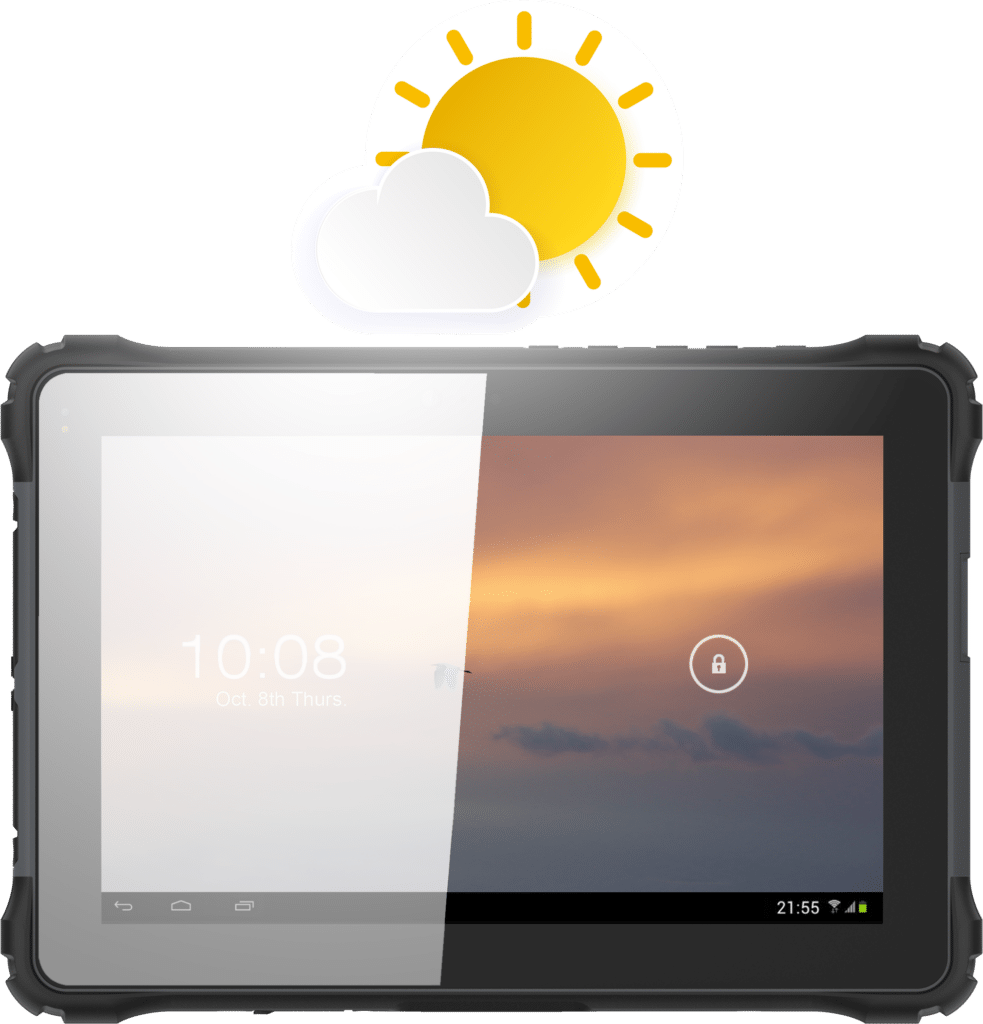

Built to withstand the toughest environments, the MS-100A is designed with IP67-rated water and dust protection and is MIL-STD-810G compliant, ensuring drop and shock resistance from up to 4 feet. It can handle shocks, vibrations, and extreme temperatures, making it perfect for outdoor use in industries like construction, logistics, and field services. The 350-nit display, with an optional upgrade to 800 nits for sunlight readability, ensures that the screen remains clear even in bright outdoor conditions, making it ideal for professionals in unpredictable environments.

Versatile Connectivity and Expansion Modules

Stay connected with the latest wireless technology, including Wi-Fi 802.11 a/b/g/n/ac, Bluetooth 5.0, and optional 4G LTE, enabling seamless communication and real-time data transfer in industries like warehousing, logistics, and transportation. The tablet’s Pogo docking connector supports easy integration with optional peripherals such as keyboards and docking stations. Additionally, the MS-100A supports various expansion modules, including NFC, RFID, Barcode Reader, Smart Card Reader, and Rail Magnetic Stripe Reader, offering customizable solutions for industries ranging from retail to manufacturing.

Built for Long-Lasting Use

The MS-100A comes equipped with a powerful 3.85V, 7792mAh battery that provides up to 12 hours of operation, ensuring uninterrupted use throughout long work shifts. Support for Quick Charge 3.0 minimizes downtime, allowing for fast recharging and maximizing productivity across multiple applications, whether it’s for warehouse inventory audits, field inspections, or logistics tracking.

Engineered for Harsh Environments

Designed to thrive in extreme working conditions, the MS-100A can operate in temperatures ranging from -10°C to 50°C and be stored in temperatures between -20°C and 60°C, making it highly reliable in both cold and hot environments. This rugged tablet is the ideal solution for industries requiring durability and consistent performance, whether indoors or outdoors.

*Specifications are representative. Specific product technology may be different than indicated.

RUGGEDNESS

Waterproof	IP65, IEC60529 Options: IP 67
Drop Rating	MIL-STD-810G, 6 ft to plywood and 4ft to concrete
Shock Rating	MIL-STD-810G, Method 516.6, Procedure I, 40g 11ms
Vibration Rating	MIL-STD-810G, Method 514.6, Procedure I, Category 4
ESD Protection	6KV Touch, 8KV Air
EMC Test	MIL-STD-461F, CE101, CE102, CS101, CS114, CS115, CS116, RE101, RE102, RS101, RS103

SYSTEM

3588, 4x Cortex

Processor	Qualcomm SDM660, 8 Core Cryo 200, 4x 2.2GHz and 4x 1.8GHz Options: RockChip RK3588, 4x Cortex – A76, 4 Cortex-A55, NPU 2.0, 8K VPU Intel Elkhart Lake SKU4, Base 1.2GHz, Turbo 3.0 GHz
GPU	Qualcomm 512GPU
Memory	4GB DDR4 Options: 6GB DDR4
OS	Android 10
Storage	4GB RAM with 64GB eMMC Options: 6GB RAM with 128GB eMMC

DISPLAY

Screen Size	10.1″ IPS
Resolution	1920 x 1200 (16:10) WUXGA
Brightness	350 NIT Options: 800 NIT, Sunlight Readable
View Angle	+/- 80°
Contrast Ratio	800:1

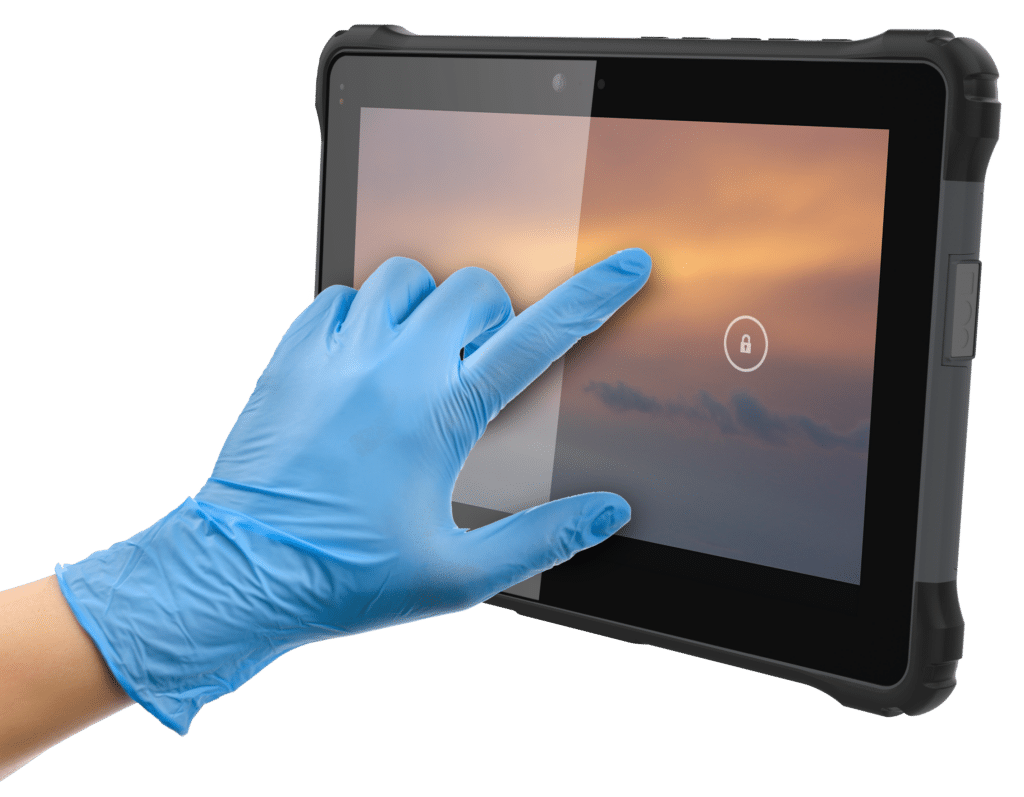

Touchscreen	Capacitive 10-Point Multi-Touch High Strength Harden Glass Ultra Optical Bonding Auto-sensing, Configurable to Wet and Gloved Touch Options: User Replaceable Anti-Glare Film

COMMUNICATIONS

Wi-Fi	802.11 a/b/g/n/ac Dual-Band 2.4GHz & 5GHz
Bluetooth	Bluetooth v5.0
4G/5G/LTE	4G/LTE Cat 6
GPS	GPS, GLONASS, BeiDou Cold Start No More than 60s

I/O INTERFACE

Sensors	Gyroscope Ambient Light Sensor G-Sensor Compass
Audio	1x Built-In Microphone 1x Internal 8ohm 1W Speaker
Camera	Front Camera: 5MP Rear Camera: 13MP with Auto Focus LED Flash

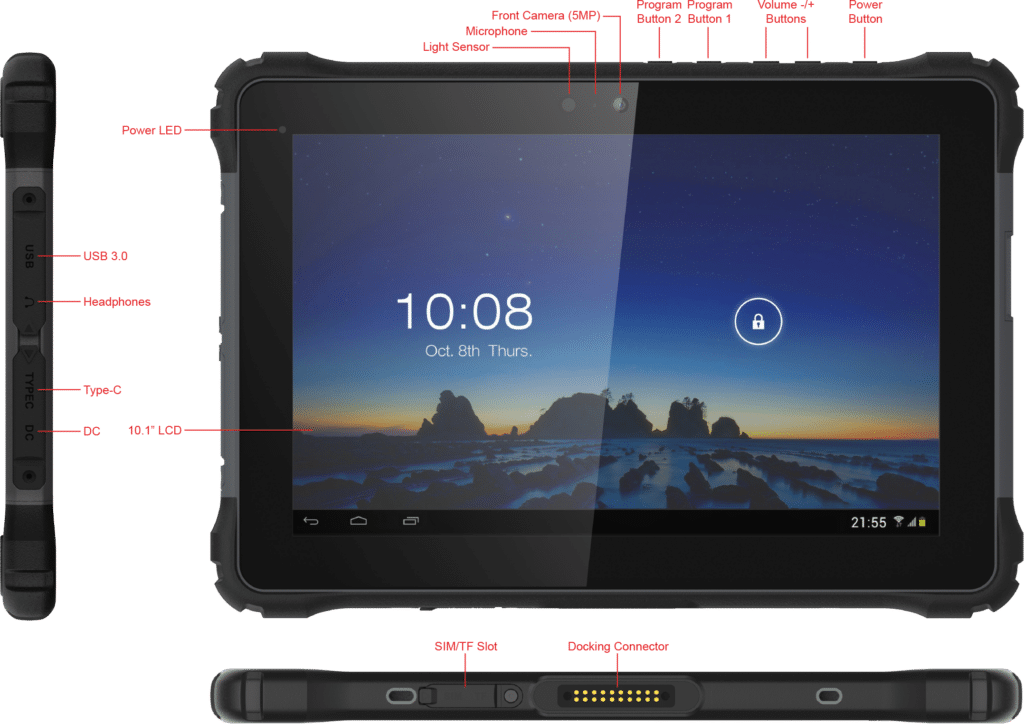

Ports	1x USB 3.0 @ 750mA Type C 1x USB 3.0 @ 750mA Type A 1x Audio Jack (3.5mm, 4 Pole, MIC input) 1x Docking Connector (10-pin, 12V DC Input, 1 USB 2.0) 1x Optional SIM/TF Card Slot
Buttons	Power Button on/off (Hold 10s will reset the system) Volume +, Volume – 2x Programmable Buttons

EXPANSION I/O

Expansion Modules (Option)

Newland NLS-EM3296, Built-In 1D/2D Barcode Reader
Magnetic Stripe Reader
OMNIKEY® 3121 Smart Card Module
UHF RFID Module
NFC Module

MECHANICAL

Chassis	Double Injection Molding with Mg-AI chassis, Rubber Protection
Dimensions	270 x 180 x 16mm
Weight	0.98kg

POWER

AC Adapter	Standard US Plug QC3.018W Quick Charge Options: Multi-Nation Plugs
Battery	3.85V, 7792 mAh Battery Charging Time 3.5 Hours

ENVIRONMENTAL

Operating Temp	-10°C to 50°C
Storage Temp	-40°C to 70°C
Humidity	1% to 95% Non-condensing, -30° To 60°C, 5 Cycles Of 48 Hours
Thermal Shock	-30° to 70°C Within 5 Minutes, No Operating
RoHS	Compliant

REGULATORY

Certification	FCC, CE, IC, RoHS
Tablet Regulatory	Upon Request
Battery	UL/UN38.3

Product Options

*MOQ for some options.

OPTIONAL MODULES

Processor	RockChip RK3588, 4x Cortex – A76, 4 Cortex-A55, NPU 2.0, 8K VPU Intel Elkhart Lake SKU4, Base 1.2GHz, Turbo 3.0 GHz
Barcode Reader Module	Newland NLS-EM3296, Built-in 1D/2D
Magnetic Stripe Reader Module	ISO 7810 and ISO 7811, AAMVA, 4 to 60 IPS
Smart Card Reader Module	ISO 7816 & EMV 2 2000 Level 1
UHF Reader Module	GB:920MHz～925MHz, GB:840MHz～845MHz, FCC:902MHz～928MHz

Documentation

MS-100A Data Sheet-2024-10-11 Download
