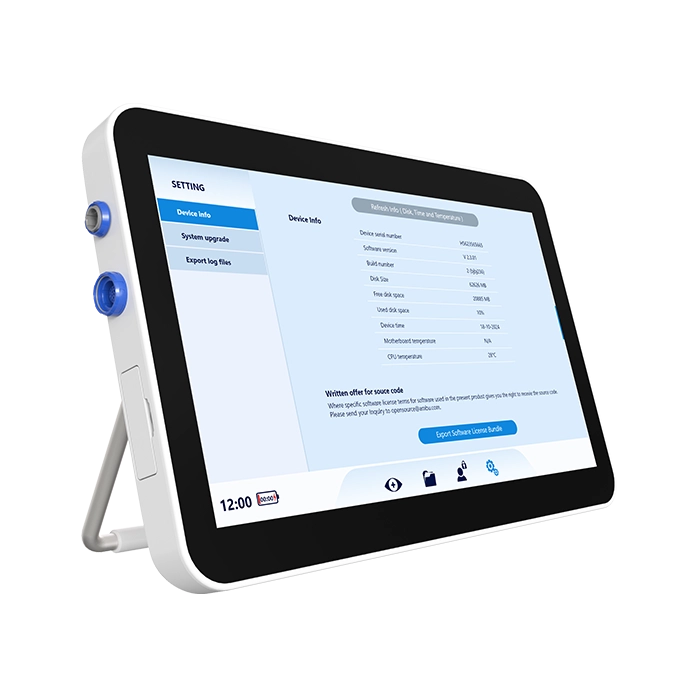

15.6" AI Tablet for Endoscopy & Medical Imaging | EN-150_front

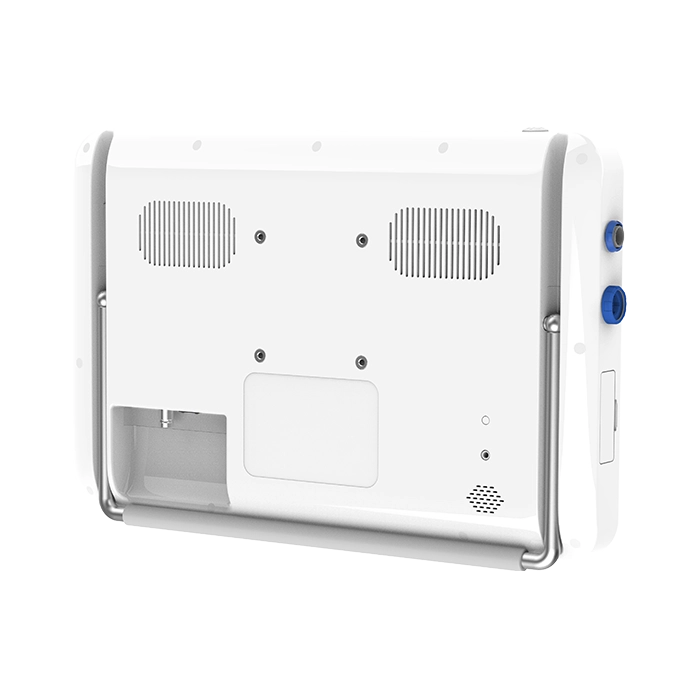

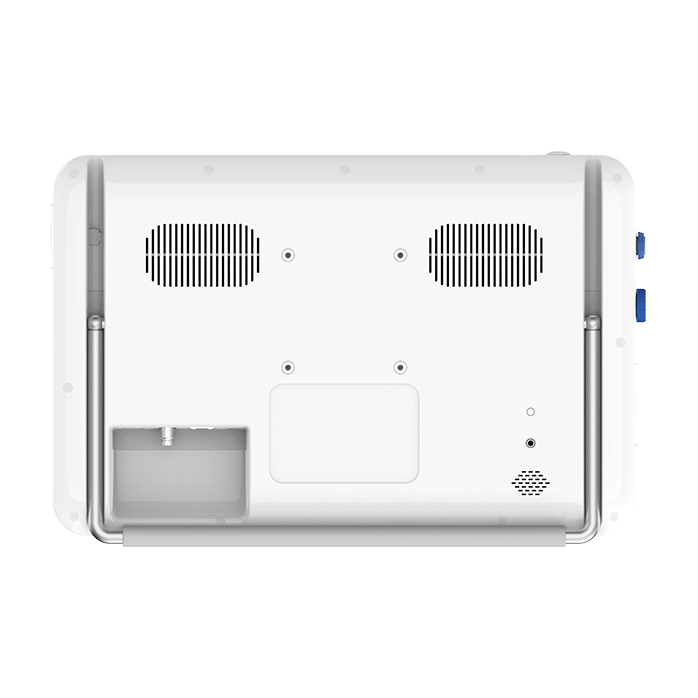

15.6" AI Tablet for Endoscopy & Medical Imaging | EN-150_back

15.6" AI Tablet for Endoscopy & Medical Imaging | EN-150_front side

15.6" AI Tablet for Endoscopy & Medical Imaging | EN-150_back side

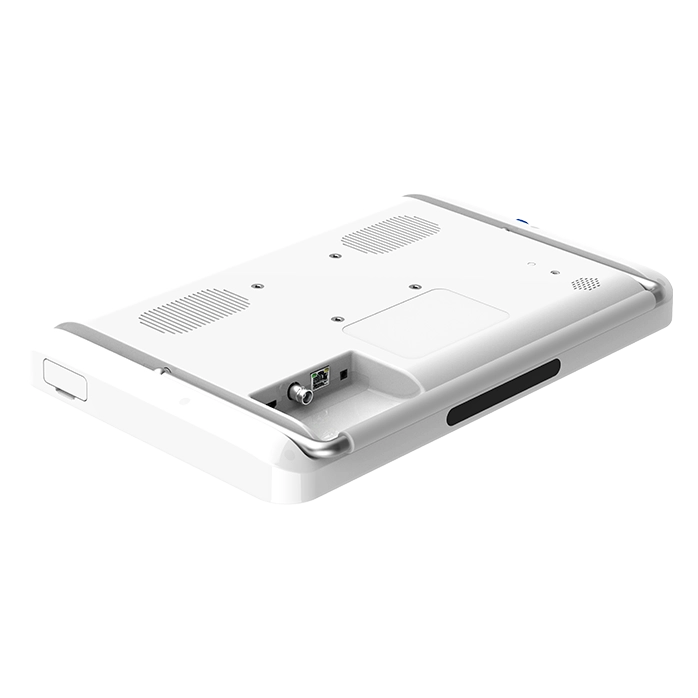

15.6" AI Tablet for Endoscopy & Medical Imaging | EN-150_underside

15.6" AI Tablet for Endoscopy & Medical Imaging | EN-150

Note: EN-150 is for custom projects only and not for small quantity sales.

The EN-150 is a portable FPGA-accelerated endoscopy imaging platform engineered for integration into advanced medical visualization and sursical imaging systems. Built on a heterogeneous ARM+FPGA architecture, the platform delivers deterministic real-time image procesing, muti-scope hardware suport, and flexible video output within a 15.6" baseline reference configuration. Display size, mechanical structure, electrical interfaces, and I/O architecture are fully scalable to align with OEM system specifications. Provided as a configurable integration platform rather than a fixed-function finished device, the EN-150 supports collaborative ODM/OEM development. Mechanical design, firmware architecture, regulatory alignment strategy, and feature configuration are jointly defined to support long- lifecycle medical deployment and structured compliance pathways.

Key Features

15.6" Full HD Capacitive Touch Display (1920 x 1080) (Customizable display sizes up to 32" for OEM/ODM projects)

Deterministic FPGA-Based Real-Time Image Processing Architecture

Heterogeneous ARM + FPGA Computing Platform

Supports Up to 3 Customizable Endoscope Interfaces

Support Multi-Resolution Endoscope Signal

Support Dual-Stream Imaging

Linux-Based Platform (Optional: Android OS Support)

Multi-Interface Video Output (HDMI /3G-SDI)

Long Lasting Battery Power for Mobile Operation

Ultra-Fast FPGA-Powered Imaging for Real-Time Endoscopy

Powered by a high-performance Xilinx FPGA, the EN-150 Portable Endoscopy System delivers real-time, low-latency video processing, ensuring crisp, high-resolution imaging for endoscopic procedures. Its advanced image processing algorithms - including scaling up to 1920 x 1080, noise reduction, edge enhancement, and gamma/DICOM calibration – enhance image clarity and contrast, allowing for precise diagnostics and improved procedural accuracy.

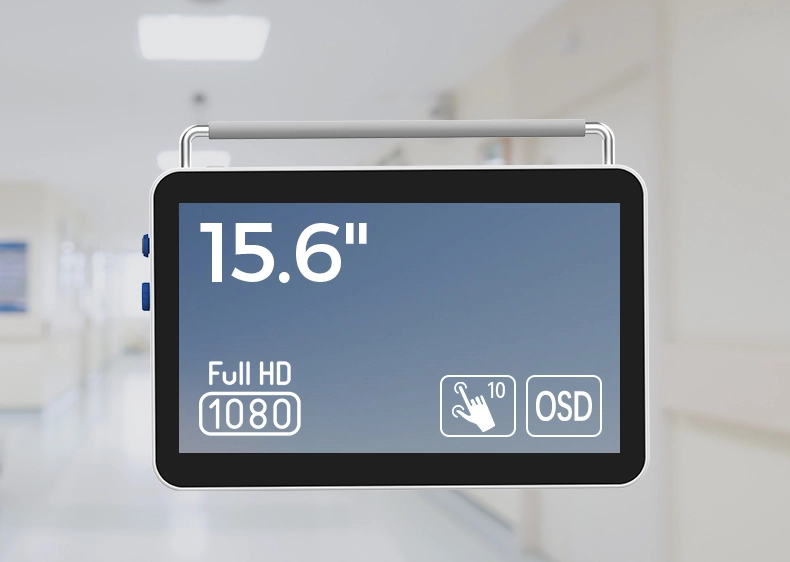

15.6" Full HD Touchscreen – High-Resolution Clarity & Precision

The EN-150 features a 15.6-inch Full HD (1920 x 1080) capacitive touchscreen, designed for sharp, high-contrast medical imaging. The hardened glass panel and 350-nit brightness provide exceptional durability and visibility, even in high-brightness or operating room conditions. Its intuitive OSD menu allows users to fine-tune brightness, contrast, RGB gain, sharpness, noise reduction, and zoom, ensuring optimal image quality for diverse clinical applications.

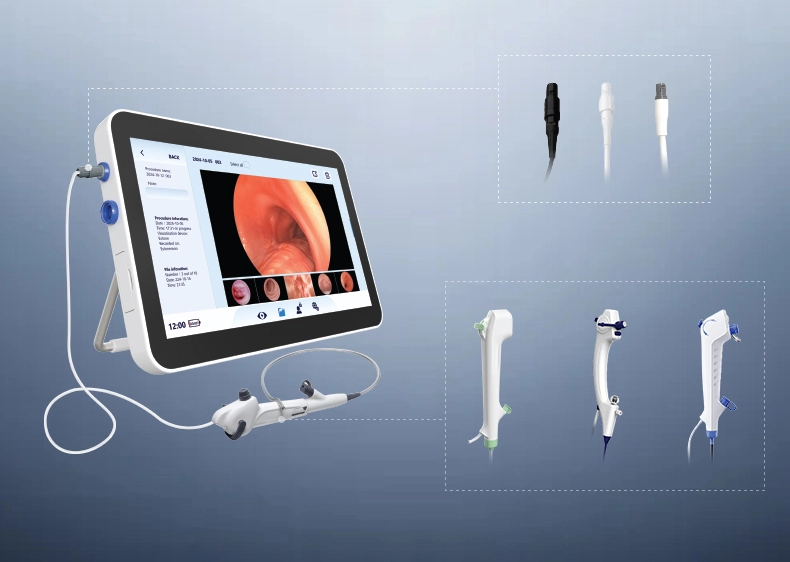

Customizable for Various Endoscopes

EN-150 IO ports can be customized and support a broad range of endoscope and handles, accommodating resolutions from 400 x 400 up to 1920 x 1080. It is ideal for hospitals, ambulances, field hospitals, and emergency medical teams. Its low-latency image transmission via 3G-SDI and HDMI ensures real-time viewing without lag, improving workflow efficiency in critical procedures.

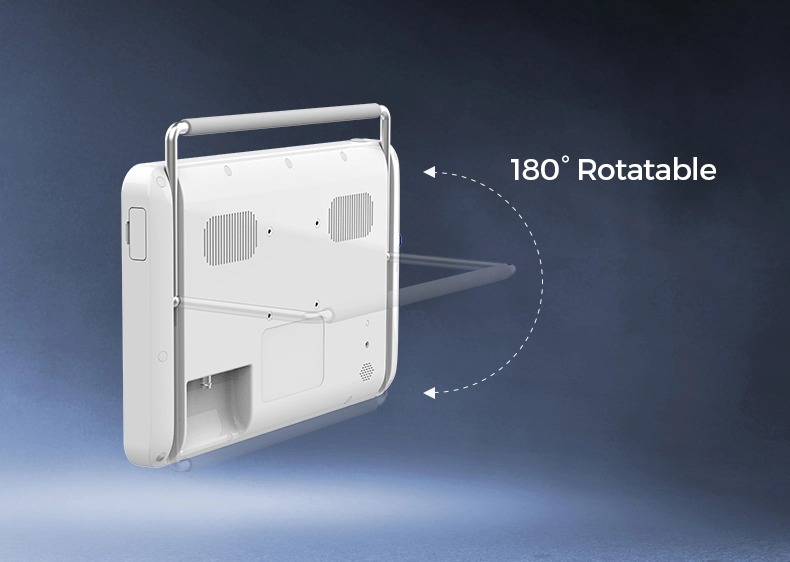

Adaptable Kickstand Handle for Mobile & Stationary Use

Designed for maximum portability and adaptability, the 180° rotatable kickstand enables multi-mode usability. It functions as a handle for handheld operation or as a stable stand for fixed procedures, making the EN-150 a reliable choice for operating rooms, emergency response teams, and mobile healthcare units. Its VESA mount compatibility allows for seamless integration into existing hospital setups.

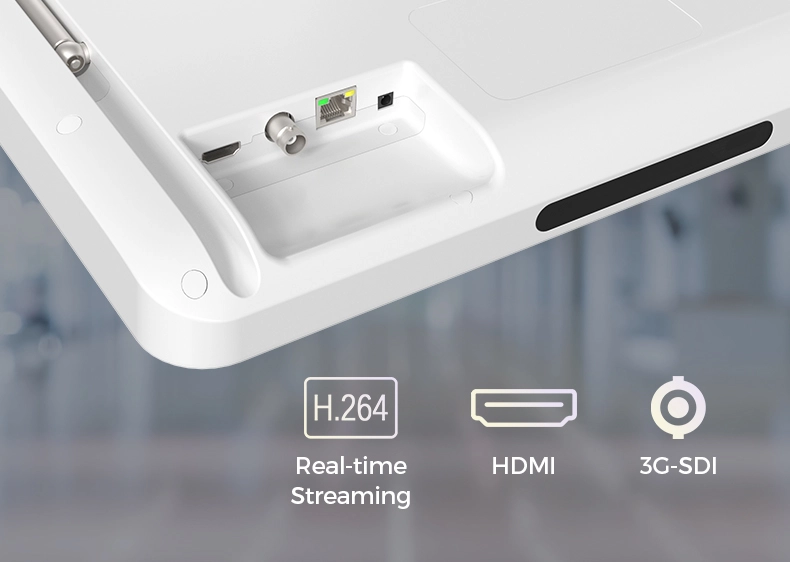

Seamless PACS & DICOM Integration for Efficient Workflow

The EN-150 fully supports DICOM file storage and PACS integration, ensuring seamless interoperability with hospital networks. With real-time H.264 streaming, HDMI output, and 3G-SDI connectivity, it allows for efficient data sharing, documentation, and remote consultation, enhancing collaboration between medical professionals.

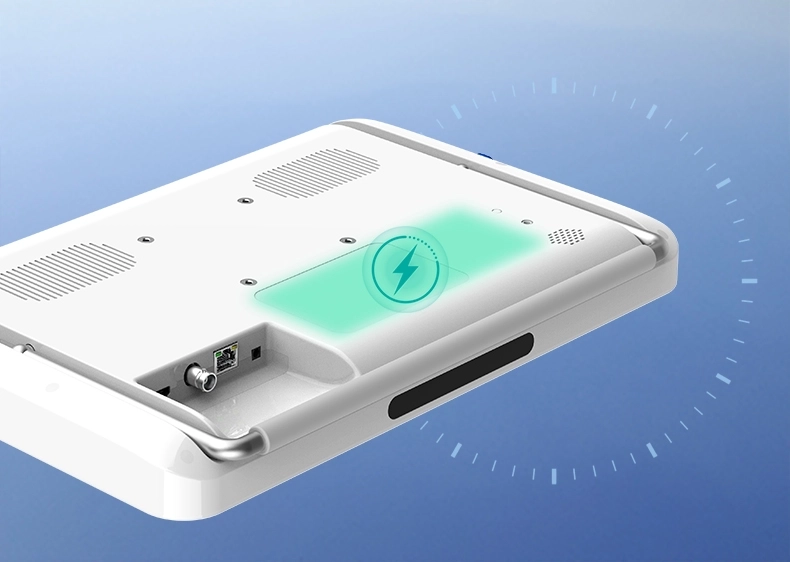

Long-Lasting Battery & Advanced Connectivity for Mobile Healthcare

Equipped with a high-capacity 93.6Wh lithium-ion battery, the EN-150 delivers up to 5 hours of continuous operation, making it perfect for portable, field, and emergency use. Its dual-band Wi-Fi (2.4G/5G), Bluetooth 5.2, USB 3.0, HDMI, 3G-SDI, and Gigabit Ethernet ensure seamless data transfer, real-time collaboration, and reliable connectivity in modern medical environments.

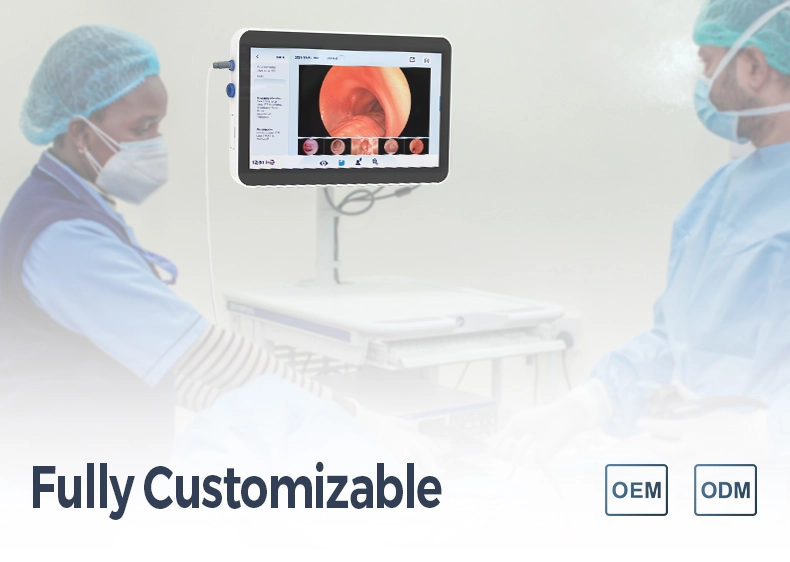

Fully Customizable Endoscopy System for Tailored Medical Applications

The EN-150 Portable Endoscopy System offers extensive customization options, ensuring seamless integration into hospitals, surgical centers, mobile medical units, and OEM solutions. As a leading ODM provider, we specialize in tailoring hardware configurations, optimizing software features, and customizing I/O interfaces to support various endoscope models and clinical workflows. The Linux-based operating system enables custom firmware development, UI modifications, and workflow automation, allowing for adaptable and efficient medical imaging solutions. Additionally, its versatile mounting options, rotatable kickstand, and multiple connectivity interfaces (HDMI, 3G-SDI, USB, Ethernet, Wi-Fi, and Bluetooth) provide exceptional flexibility across different medical environments. With PACS & DICOM integration, real-time H.264 streaming, and low-latency image transmission, the EN-150 enhances diagnostic precision, seamless data sharing, and interoperability, making it a scalable, high-performance medical imaging solution fully customizable to your exact specifications.

Specifications

SYSTEM

DISPLAY

COMMUNICATIONS

POWER

I/O INTERFACE

MECHANICAL

ENVIRONMENTAL

SYSTEM

Processor	Quad-core ARM Cortex-A76 (2.4GHz) + Quad-core ARM Cortex-A55 (1.8GHz) Processors
VPU	High-performance Xilinx Zyng-7015 FPGA
Memory	4GB LPDDR4 RAM
Storage	64GB eMMC Storage

DISPLAY

Screen Size	15.6" Full HD LCD Display
Resolution	1920 x 1080
Brightness	350-nit Brightness with LED Backlight
Touch Screen	Capacitive 10-Point Multi-Touch High-strength Hardened Glass
lmage Sensors	OV6946 (400 x 400), OV6948 (200 x 200), OV9734 (1280 x 800), OH01A (400 x 400), OV2740 (1920 x1080), OC0SA10 (400 x 400), OCHTA10 (400 x 400), OCHFA10 (400 x 400), OCH02B10 (400 x 400)

COMMUNICATIONS

Ethernet	1 x RJ45 10/100/1000M
Wi-Fi	Dual-band IEEE 802.11 a/b/g/n/ac (2.4GHz & 5GHz)
Bluetooth	Bluetooth 5.2

POWER

AC Adapter	100-240V AC input, 1.0-2.0A, 50-60Hz 19V, 3.43A DC Output
Battery	14.4V, 6500 mAh, 93.6 Wh Lithium-ion Battery

I/O INTERFACE

Audio

1 x Speaker, 8Ω/2W

1 x Microphone

Ports

2 x Endoscope Connectors

2 x USB 3.0 Type A

2 x HDMl Output

1 x 3G-SDl Output
1 x DC Power Input

Button

Power On/Off
Optional On-screen Buttons

MECHANICAL

Dimensions	391 x 255 x 37.5 mm
Kickstand	180-degree Rotatable Kickstand
Mounting	VESA 100 x 100 mm Mounting Compatibility

ENVIRONMENTAL

Operation Temperature	0°C to 45°C
Storage Temperature	-20°C to 65°C
Humidity	30% to 85% (Non-condensing)
Atmospheric Pressure	80-106kPa
Altitude	≤ 2000 m

EN-150 DataSheet-2025-03-25.pdf

2025.03.25
View Download
