8″ Rugged Medical Grade Android Tablet | MJ-80

For do-anything computing power in a more efficient tablet size, Estone Technology’s MJ-80 8″ Rugged Medical Grade Tablet PC is the perfect choice. This compact tablet features the most favored options of our larger medical grade tablets, at a size equipped for easy carrying and use all around a medical facility. Options like a fingerprint reader keep operations secure and streamlined. It’s rugged specifications for waterproof and shockproof durability and integrated GPS features make this a perfect application for any industry.

Key Features

  • Fast Octa-Core Cortex-A53 ARM Processor
  • 10-Point Capacitive Touchscreen
  • Full IP65 Waterproof/Dustproof Protection
  • Rugged – 4ft Drop/Shock Protection (MIL-STD-810G)
  • Long Life Battery – up to 8 Hours Runtime
  • Optional 1D/2D Barcode Module & GPS Module
Inquiries Data Sheet

IEC-60601 Medical Certification

The Medical version of the MJ-80 has been carefully designed with the needs of doctors, hospitals, and medical professionals in mind. The device can safely be used among patients, in lab environments, and beyond. We have designed the medical tablet for all types of healthcare practitioners and healthcare applications. Recommended uses include: Nursing, EMR / EHR, Pharmacy, Laboratory and Hospital Management.

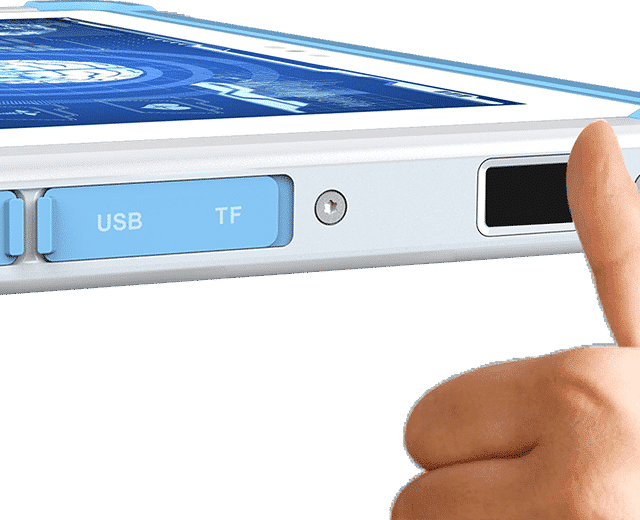

Maximum Security – Fingerprint Reader

Protect sensitive data like patient records and pharmaceutical data with potent, but easy to use security. A built-in fingerprint reader allows quick, easy, secure access to a rotating cast of approved users.

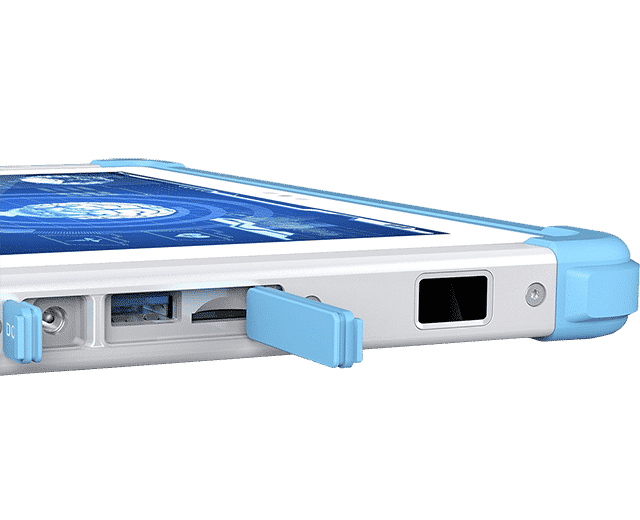

Fully Rugged and Waterproof

Planned and designed for every use and abuse situation, the MJ-100 tablet exceeds your expectations for what a durable office-and-field tablet should be. It is fully MIL-STD-810G Standard compliant, able to sustain drops of up to 4 ft, heavy shocks and vibration, impacts, static discharge, and more. It is IP65 waterproof to resistant water, its sealed exterior ports protect even the most sensitive parts of your device.

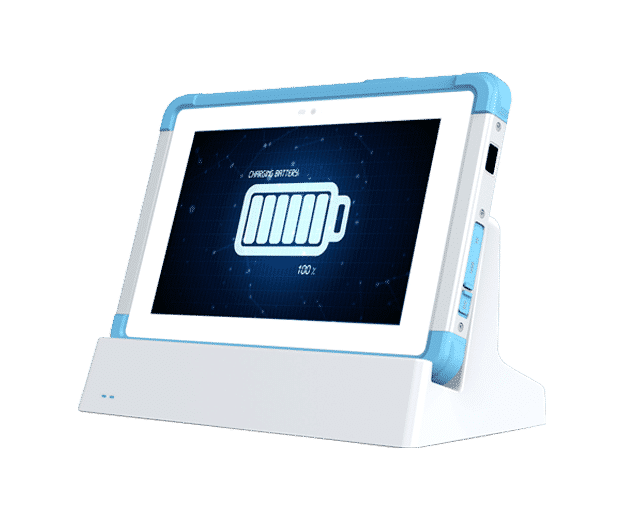

Drop-In Charging and Data

When you’re not on the move, drop the tablet into the dock to use as a panel PC and always keep the battery charged up. The dock supports both DC charging and USB connectivity for easy use and data transfer.

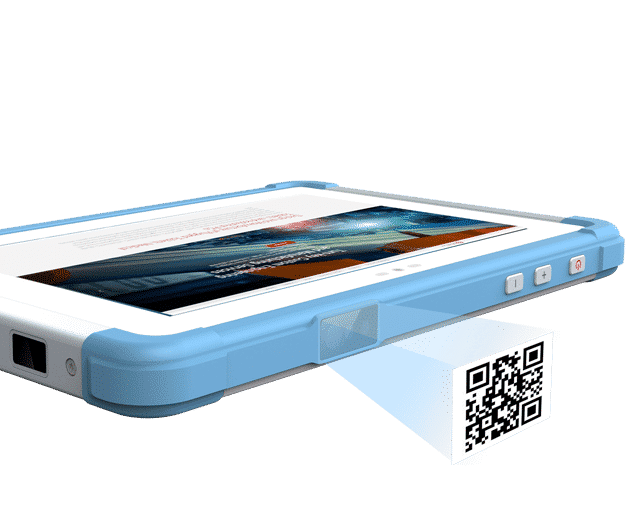

Integrated Barcode Scanner Available

Mobility electronics that ease your workload! Available tools like integrated barcode scanners and GPS sensors help automate your most consistent tasks.

Sunlight Readable

Changing lighting and use environments can damage tablet performance or usability. Special screen coating options can reduce or eliminate glare, reflections, and fingerprint distortions.

*Specifications are representative. Specific product technology may be different than indicated.

RUGGEDNESS
WaterproofIP65 IEC60529
Drop RatingMIL-STD-810G, 4ft to Plywood on 26 Corners
Shock RatingMIL-STD-810G, Method 516.6, Procedure I, 40g 11ms
Vibration RatingMIL-STD-810G, 514.6, Procedure I Category 4, Category 20, Category 24
ESD Protection6KV Touch, 8KV Air
EMC TestFollows FCC
SYSTEM
ProcessorRockChip RK3368, 1.5GHz,Octa-core Cortex-A53
GPUG6110 GPU 4K@60fps H.265 HDMI 2.0 with HDCP 2.2
Memory2GB LPDDR3-1866
Options:
4GB LPDDR3-1866
OSAndroid 7.1
Options:
Linux (Custom Projects)
Storage32GB eMMC 5.1
Options:
64GB eMMC 5.1
DISPLAY
Screen Size8″ IPS
Resolution1200 x 800
Brightness300 NIT
View Angle+/- 85°
Contrast Ratio800:1
TouchscreenCapacitive 10-Point Multi-Touch
Chemically Hardened Cover Glass
Glass Coating Options:
Anti-Reflective
Anti-Glare
Anti-Fingerprint
COMMUNICATIONS
Wi-FiAP6255, 802.11 a/b/g/n/ac Dual-Band 2.4G & 5G
BluetoothBluetooth v4.0
GPS (Option)Tracks Up to 16 Satellites, 1575.42 MHz
Device GPS Accuracy < 15m, 95% Typical
Velocity Accuracy 0.05m/s
Heading Accuracy 0.3 Degrees
Horizontal Position Accuracy > 10m
NFC (Option)Compliant with ISO/IEC 14443 A/B, 15693/18092, Distance 2.5mm
I/O INTERFACE
SensorsGyroscope
Light Sensor
Compass
Audio1x Built-In Microphone
1x Internal 8ohm 1W speaker
CameraFront Camera: 2MP
Rear Camera: 8MP with Auto Focus
Ports1x USB 2.0
1x Micro USB @ 1A
1x Micro HDMI Output Type D
1x Audio Jack (3.5mm, 4 Pole, MIC input)
1x DC Jack 5.5mm OD Jack
ButtonsPower
Volume +, Volume –
2x Programmable
Barcode Reader (Option)Newland NLS-EM2096, Built-In 1D/2D
Fingerprint Reader (Option)Capacitive
MECHANICAL
ChassisFront: Plastic + TPU Rubber, Back: Plastic
Dimensions237 x 159 x 17mm
Weight0.75kg
POWER
AC Adapter12V DC 3A Output, 100-240V AC input, Standard US Plug
(Option)
Medical AC Adapter
Multi-Nation Plugs
Battery24WHh Battery, Li-on Polymer, 2S1P, 7.4V 3200mAh
ENVIRONMENTAL
Operating Temp0°C to 45°C
Storage Temp-20°C to 60°C
Humidity10% to 90%
RoHSCompliant
REGULATORY
CertificationFCC, IATA, IEC62133, IEC60601-1

Product Options

*MOQ for some options.

OPTIONAL MODULES
Barcode Reader1D/2D combo, Newland NLS-EM3296
NFCPN548
Fingerprint ReaderCapacitance finger print reader
RFID Reader13.56M RFID module
CAC ReaderHID OMNIKEY® 3121
OPTIONAL ACCESSORIES
Docking StationRJ45+UART+USB2.O+DC output from dock

Documentation

MJ-80 Data Sheet-2024-09-23Download
