15.6” Rugged Medical Grade Windows Tablet PC | MD-150

Active Development

The MD-150 sits at the crossroads where performance meets form factor. Boasting the 11th Generation Intel Tiger Lake i5 or i7 processor, LPDDR4X ram, and 4th Generation PCIe SSD, performance is no question. With the latest technology wrapped in a 15.6″ Auto-sensing touch display with the latest connectivity options and hot-swappable batteries, this tablet pushes productivity to the edge of mobility. Perfect for any industry with its rugged design and IP65 waterproof chassis.

Key Features

  • 15.6” Rugged Medical Tablet PC
  • 11th Gen Intel Tiger Lake i5 or i7 Processor
  • Windows 11, Windows 10, or Linux OS
  • Wi-Fi 6, Bluetooth v5.2, Gigabit Ethernet, Optional 4G LTE
  • 2x Hot-Swappable Batteries
  • IP65 Water & Dust Protection
  • 4ft Drop/Shock Protection (MIL-STD-810H & G)
  • PCIe 4th Gen SSD Storage
Inquiries Data Sheet

Antimicrobial Housing

MD-150 Medical Grade Tablets are designed specifically for healthcare. Powerful, lightweight, durable design and antimicrobial enclosure combine to give you the ideal tool for healthcare environments. Medical grade tablets are antimicrobial to prevent the spread of harmful microbes and are IP65 rated so they can be regularly disinfected without damaging the unit.

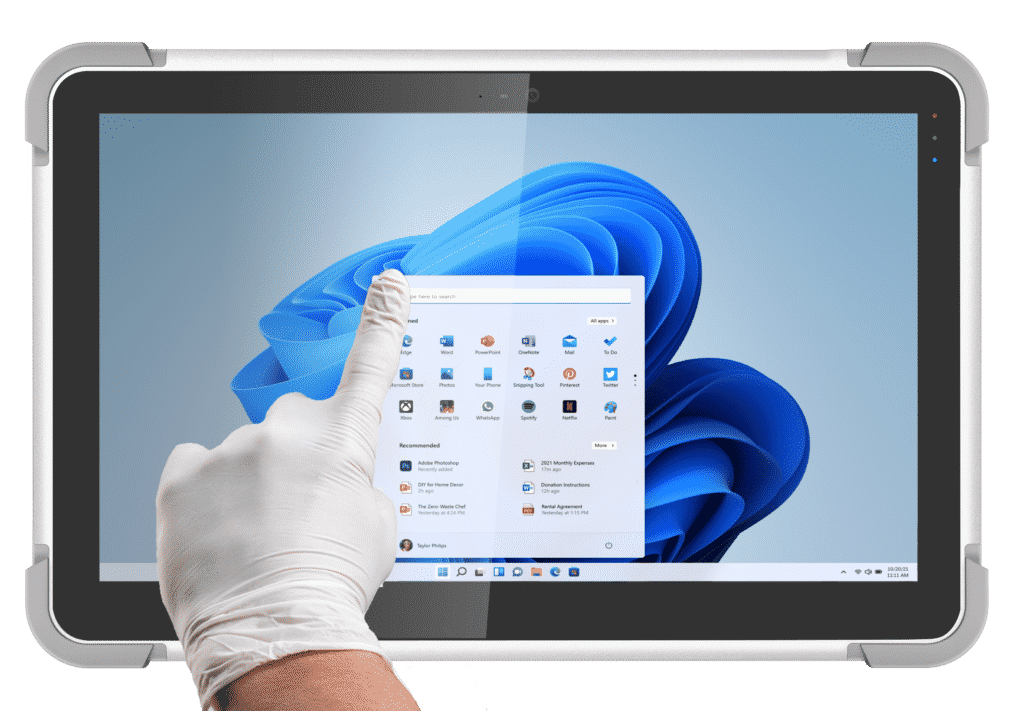

Auto-Sensing Touch Technology, Wet and Glove

The MD-150 is designed for the medical industry, where users are always wearing gloves or constantly washing their hands. Our auto-sensing touch technology can help prevent the frustration that can happen when hands aren’t dry enough for a conventional touch screen or the annoyance of taking off gloves, only to put them back on after use.

Incredible Power and Functional Size

The MD-150 features the newest Intel 11th generation Tiger Lake Core i5 or i7 processor, with 8GB or 16GB LPDDR4X RAM, and up to 1TB of internal Gen 4 PCIe SSD storage. The 15.6″ screen puts the tablet’s form factor right where mobility meets productivity.

Including the newest OS, Windows 11

With the latest hardware, you need the latest OS and we have it on the MD-150. The MD-150 is available with Windows 11, Windows 10 or it can be customized with a distribution of the Linux Operating System.

*Specifications are representative. Specific product technology may be different than indicated.

RUGGEDNESS
WaterproofIP65, IEC60529-2013
Drop RatingMIL-STD-810H-2014, Method 516.6, Procedure IV, 4ft to Marble
Shock RatingMIL-STD-810G, Method 516.6, Procedure I, 40G
Vibration RatingMIL-STD-810G-2014, Method 514.6, Procedure I
ESD Protection8KV Touch, 15KV Air
SYSTEM
ProcessorIntel Tiger Lake i5-1145GRE, Quad-Core, Base 1.5GHz, Burst 4.1GHz, 8M Smart Cache
Options:
Intel Tiger Lake i7-1185G7E, Quad-Core, Base 1.8GHz, Burst 4.4GHz, 12M Smart Cache
GPUIntel® Iris® Xe Graphics, Max Frequency to 1.35GHz
Memory8GB LPDDR4X
Options:
16GB LPDDR4X
OSWindows 11, 64bit
Options:
Windows 10 Pro/LTSB, 64bit
Linux (Custom Project)
Storage256GB Gen 4 PCIe SSD
Options:
512GB Gen 4 PCIe SSD
1TB Gen 4 PCIe SSD
SecurityIntel AES New Instructions
TPM 2.0
Intel vPro
DISPLAY
Screen Size15.6″ IPS
Resolution1920 x 1080 (16:9)
Brightness300 NIT
View Angle+/- 85°
Contrast Ratio800:1
TouchscreenCapacitive 10-Point Multi-Touch
Hardened Chemical Glass
Ultra Optical Bonding
User Replaceable Anti-Glare Film
Auto-sensing, Configurable to Wet and Gloved Touch
COMMUNICATIONS
Ethernet1x 10/100/1000M RJ45 Port
Wi-FiIntel AX210 Wi-Fi Chipset, Wi-Fi 6
802.11 a/b/g/n/ac/ax 2.4G & 5G
BluetoothBluetooth v5.2
4G LTE (Option)Sierra EM7455, M.2 Interface
4G: Cat-6, Frequency Bands: B1-B5,B7,B8,B12,B13,B20,B25, B26, B29, B30, B41
3G: HSPA+, UMTS, Frequency Bands: B1, B2, B3, B4, B5, B8
CE, FCC, GCF, IC, NCC, PTCRB
Verizon, T-Mobile, AT&T Certified
GPSuBlox NEO-M10
GPS L1C/A, SBAS L1C/A, QZSS L1C/A, GLONASS L1OF, BeiDou B1, Galileo E1B/C
–167 dBm Navigation Sensitivity
Cold Start No More than 40s
I/O INTERFACE
SensorsGyroscope
Ambient Light Sensor
G-Sensor
Compass
Audio1x Built-In Microphone
2x Internal 4ohm 1.5W Speakers
CameraFront Camera: 2MP
Rear Camera: 5MP with LED Flash
Options:
Front Camera: 5MP
Ports1x USB 3.0 @ 1000mA Type C
1x USB 3.0 @ 1500mA Type A
1x USB 2.0 @ 1000mA Type A
2x Docking Connector (24 pin, 19V DC, 1x USB 3.0, HDMI Output)
1x Audio Jack (3.5mm, 4 Pole, MIC input)
1x Micro SD Slot (Maximum 128GB)
1x Nano SIM Slot
1x PoGo Pin Connector on Rear Surface (24-Pin, USB 3.0 and Charging)
1x DC Jack
ButtonsPower Button
Volume +, Volume –
3x Programmable Buttons
MECHANICAL
ChassisFront: Plastic, Back: Aluminum, Feet: LSR
Options:
Anti-Microbial Glass/Chassis
Dimensions406.8 x 260.8 x 20.5mm
Weight2.2kg
Mount75 x 75mm, M4 Screw
LEDPower
Battery
SSD
POWER
AC Adapter19V DC 5.25A Output, 110-240V AC Input, Standard US Plug
Options:
Multi-Nation Plugs
Medical AC Adapter
Battery2x Hot-Swappable Battery
7.7V 3896mAH, 30Wh Each
Battery charging time: 5 hours
ENVIRONMENTAL
Operating Temp-10°C to 55°C
Storage Temp-20°C to 60°C
Humidity1% to 95% Non-condensing, -30° To 60°C, 5 Cycles Of 48 Hours
Thermal Shock-30° to 70°C Within 5 Minutes, No Operating
REGULATORY
CertificationFCC, CE, IEC60601-1, IEC60601-1-2
BatteryCE, UL, MSDS, CB, IEEE, UN38.3, IATA

Documentation

MD-150 Data SheetDownload

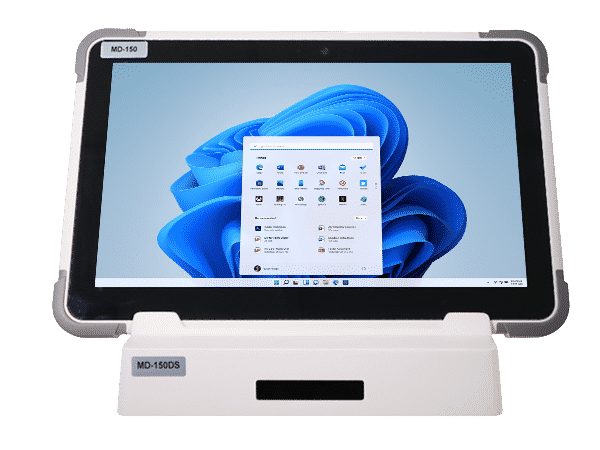

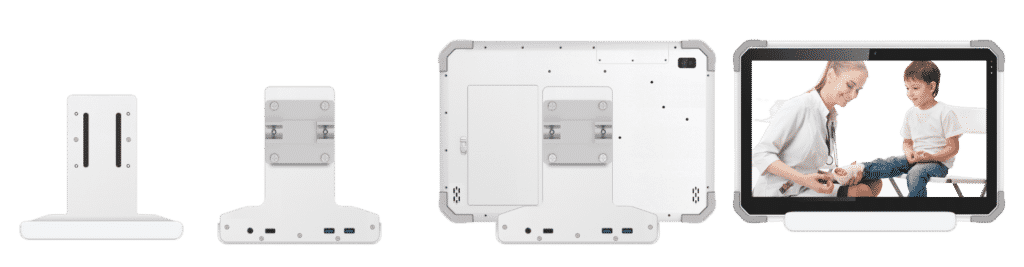

Accessories

The MD-150 also comes with a bunch of accessories that complement the ease of use. Check them out below:
