14″ Semi-Rugged Medical Grade Windows Tablet | MT-140

The MT-140 Semi-Rugged Tablet is a 14″ Intel-powered tablet for medical and commercial uses. The medical-grade chassis and IP54 waterproof front screen can be easily disinfected. The VESA mounting allows for use with wheelchairs, computer carts, and more. A large, high definition screen and a variety of options make this the perfect choice for any semi-permanent application.

Key Features

  • 14″ Semi-Rugged Tablet
  • Intel i5/i7 CPU – Up to 2.9GHz
  • Windows 10 or Linux
  • Optional CAC Card Reader
  • IP54 Waterproof Rating
  • WiFi, BT 4.0, and NFC/RFID Connectivity
  • Up to 20 Hours Active Runtime
MT140-Powerful Computing Tablet

A Powerful Tablet or Panel PC

The MT-140 is a 14″ Semi-Rugged Tablet PC designed for medical and commercial use. A powerful Intel Kaby Lake Core i5 (or i7 as a factory option) multi-core CPU running Windows 10 Pro, Android, or Linux provides the computing robustness and compatibility you need. Battery life up to 20 hours ensures that it keeps going while you do.

medical certified tablet

IEC-60601 Medical Certification

The Medical version of the MJ-80 has been carefully designed with the needs of doctors, hospitals, and medical professionals in mind. The device can safely be used among patients, in lab environments, and beyond. We have designed the medical tablet for all types of healthcare practitioners and healthcare applications. Recommended uses include: nursing, EMR, EHR, pharmacy, laboratory and hospital management.

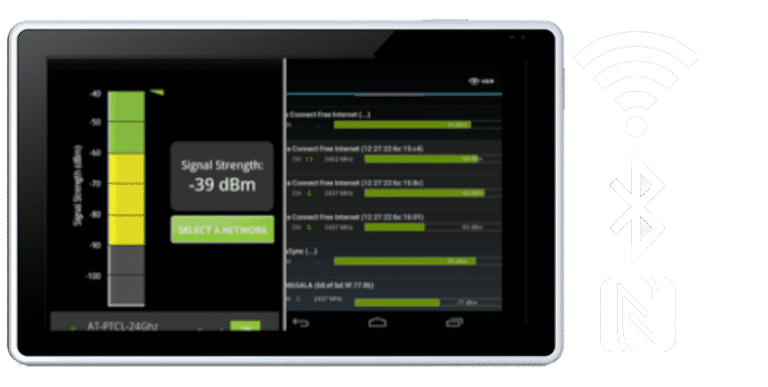

14" Rugged Tablet with Wireless Connectvity

Unlimited Wireless Connectivity

Take the entire office with you, no matter where you go in the field, with complete wireless connectivity, including WiFi, Bluetooth, and available NFC connectivity for security, tracking, or logistics. Never be out of touch or unable to access the information you need.

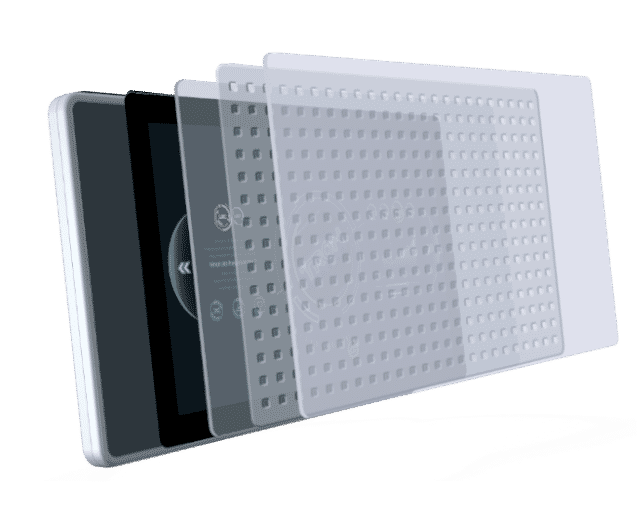

Durable Touchscreen

Durable, Glove Sensitive Display

In healthcare environments, it isn’t efficient to constantly put on and remove sanitary gloves. The MT-140 touch screen is highly sensitive and can work with bare or gloved hands. Don’t worry about drops or impacts – our ultra-strength LCDs are designed to withstand abuse.

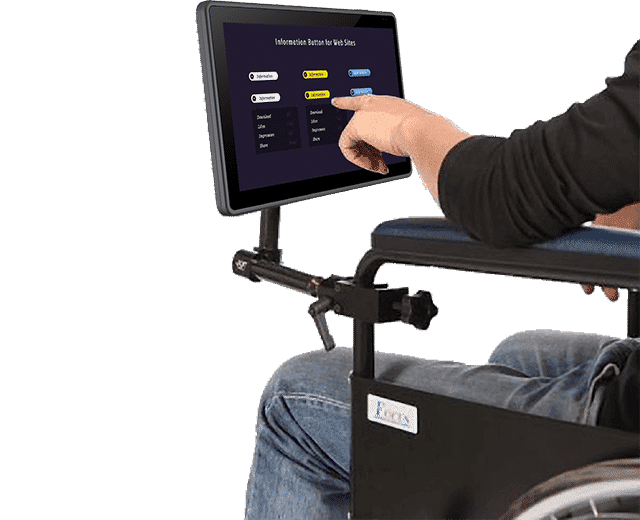

Tablet with Medical Cart Mounting

Universal VESA Mounting

The tablet can be mounted onto any computer cart, wheelchair, and most other locations for mobile computing equipped with VESA mounting. It is designed to resist electronic noise and other hazards.

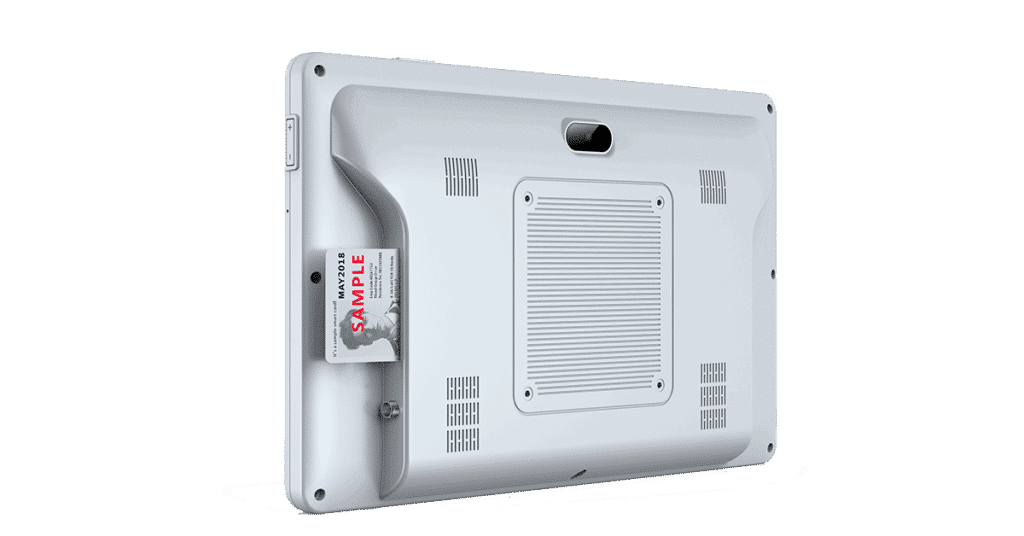

MT140- rugged tablet with Card-Reader

Smartcard TPM Security

Reduce the risk of theft and illicit access with virtual SmartCard and built-in TPM 2.0 security. This security feature locks out processor functions when necessary hardware security elements aren’t present.

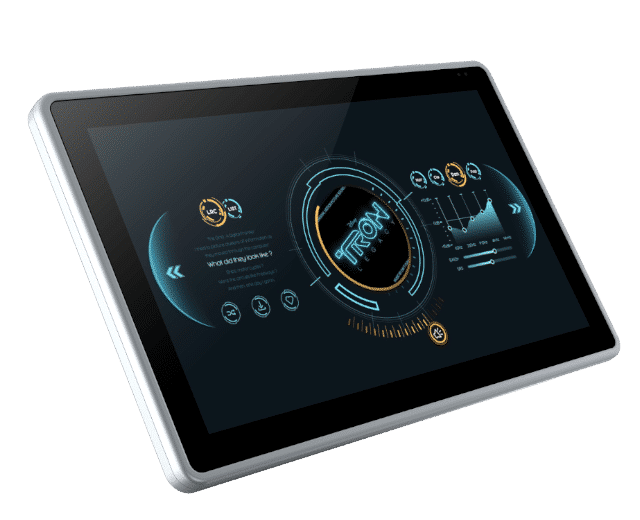

White MT-140 medical grade tablet pc front view with windows operating system

Semi-Rugged, Waterproof

MT-140 semi-rugged tablet is built with flexibility and affordability, with its MIL-STD-810G compliant and IP54 rated waterproof and dustproof, It is a purpose-built, application-specific rugged tablet, intended for use in all types of mobile device settings, including healthcare, construction, logistics, and so on.

*Specifications are representative. Specific product technology may be different than indicated.

RUGGEDNESS
WaterproofIP54 Rated Front Panel
Drop RatingMIL-STD-810G, 4ft to Plywood on 4 Corners
Shock RatingMIL-STD-810G, Method 516.6, Procedure I
Vibration RatingMIL-STD-810G, 514.6, Procedure I Category 4, Category 20, Category 24
ESD Protection8KV Touch, 15KV Air
SYSTEM
ProcessorIntel Kaby Lake i5-7Y54 Dual-core, Base 1.20 GHz, Burst 3.20 GHz
GPUIntel® HD Graphics 615, Base 300MHz, Burst 950MHz, Max Video Memory 16GB
Memory8GB LPDDR3-1866
Options (MOQ Required):
16GB LPDDR3-1866
OSWindows 10 Pro, LTSB
Storage256GB SSD M.2 Interface (2280)
Options:
512GB SSD M.2 Interface (2280)
1TB SSD M.2 Interface (2280)
SecurityIntel AES New Instructions
Options:
TPM 2.0
DISPLAY
Screen Size14″ IPS
Resolution1920 x 1080
Brightness300 NIT
View Angle+/- 85°
Contrast Ratio800:1
TouchscreenCapacitive 10-Point Multi-Touch
Glass Coating Options:
Anti-Reflective
Anti-Glare
Anti-Fingerprint
COMMUNICATIONS
Wi-Fi802.11 a/b/g/n/ac Dual-Band 2.4G & 5G
BluetoothBluetooth v4.2
GPS (Option)GPS/QZSS L1 C/A, GLONASS L1 FDMA, SBAS: WAAS, EGNOS, MSAS
Navigation Update Rate Up to 10Hz, Cold Start No More Than 40s
Cold Start No More Than 40s
NFC (Option)Compliant with ISO/IEC 14443 A/B, 15693/18092, Distance 2.5mm
I/O INTERFACE
SensorsGyroscope
Light Sensor
Compass
Audio1x Built-In Microphone
1x Internal 8ohm 1W speaker
CameraFront Camera: 2MP
Rear Camera: 5MP with Auto Focus
Ports2x USB 3.0 @1.5A Type A
1x HDMI Output: Type A
1x Audio Jack (3.5mm, 4 Pole, MIC input)
1x DC Jack 2.5mm OD Jack
Options:
1x RJ45 10/100M Port
ButtonsPower Button
Volume +, Volume –
Reset
Smart Card Reader (Option)Smart Card Reader, ISO 7816 Type A/B/C Card
EN60950/IEC 60950, ISO 7816 Certification, EMV™ Level 1
MECHANICAL
ChassisFront: Magnesium Alloy, Rear: Plastic
Options:
Anti-Microbial
VESA Mount100 x 100mm
Dimensions358 x 226 x 36mm
Weight2.4kg
POWER
AC AdapterAC adaptor 110 -240V AC Input , 12V 3A Output, Standard US Plug
Options:
Medical AC Adaptor 110 -240V AC Input , 12V 3.3A Output
Battery1x 74Wh Battery, Li-on Polymer, 2S2P, 7.4V 10000mAh
10+ Hours Runtime (Per Battery)
Options:
Additional 74Wh Battery
ENVIRONMENTAL
Operating Temp0°C to 40°C
Storage Temp-20°C to 60°C
Humidity10% to 90%
RoHSCompliant
REGULATORY
CertificationFCC, IATA, IEC461F
