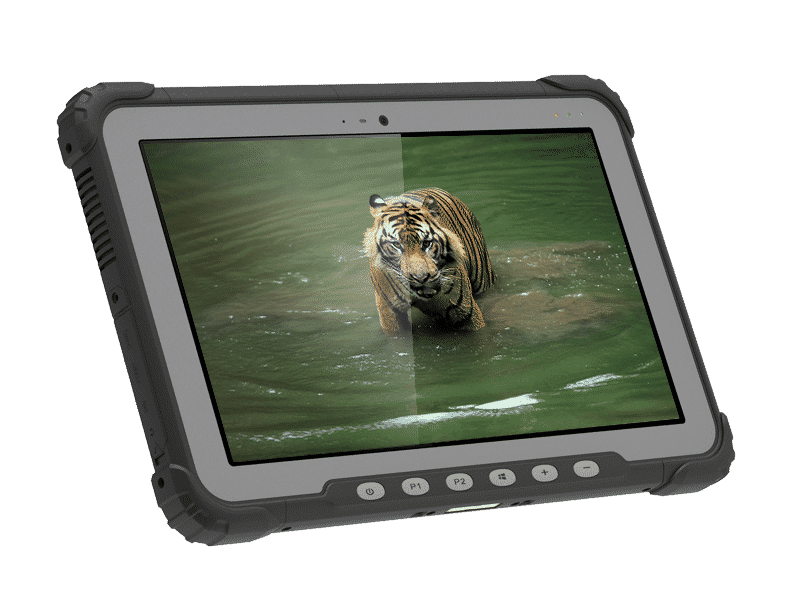

11.6” Ultra-Rugged Medical Grade Windows Tablet PC | UR-120

Active Development

The UR-120 is the most powerful and strong 12″ tablet with medical certifications available. It has the latest 11th Gen Intel Tiger Lake processor, 4th Gen PCIe SSD, and runs the latest Windows 11 OS. With it’s integrated Ethernet port, Wi-Fi 6, Bluetooth 5.2, 4G LTE and 5G scheduled for future release, connectivity issues are not even a thought. The anti-microbial chassis option makes this a winner in the medical industry and the IP67 and MIL-STD-810H testing provides a champion platform for all industries.

Key Features

  • 11.6” Ultra-Rugged Tablet PC
  • 11th Gen Intel Tiger Lake i5 or i7 Processor
  • Windows 11, Windows 10, or Linux OS
  • Wi-Fi 6, Bluetooth v5.2, Gigabit Ethernet, Optional 4G LTE
  • 2x Hot-Swappable Batteries
  • IP67 Water & Dust Protection
  • 4ft Drop/Shock Protection (MIL-STD-810H & G)
  • PCIe 4th Gen SSD Storage
Inquiries Data Sheet

IP67 Waterproof & MIL-STD-810H Drop Tested

The UR-120 is an ultra-rugged tablet with an IP67 rating, providing this tablet with waterproof protection against the elements in normal operation. It can also withstand a 5 foot drop to a marble surface, using the MIL-STD-810H requirements for lab testing against expected drop conditions for normal usage protection.

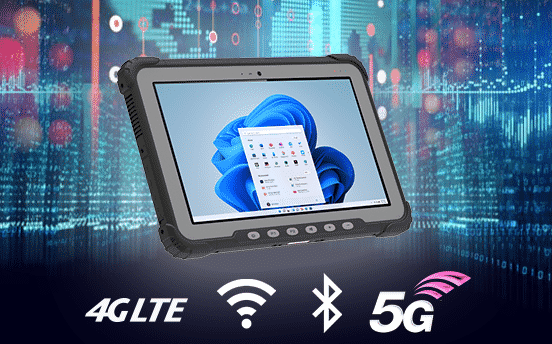

Stay Connected with Every Connectivity Option

Packed with options to stay connected, the UR-120 misses nothing. A 1 Gigabit Ethernet port provides a hardwired connection, Wi-Fi 6 Dual-band 802.11 a/b/g/n/ac/ax 2.4G & 5G provides wireless network connectivity, and finally you can stay connected through cellular services with 4G LTE and 5G. Bluetooth v5.2 connects the UR-120 to all your Bluetooth enabled peripherals.

Antimicrobial Housing

UR-120 Medical Grade Tablets are designed specifically for healthcare. Powerful, lightweight, durable design and antimicrobial enclosure combine to give you the ideal tool for healthcare environments. Medical grade tablets are antimicrobial to prevent the spread of harmful microbes and are IP67 rated so they can be regularly disinfected without damaging the unit.

Incredible Power

The UR-120 features the newest Intel 11th generation Tiger Lake Core i5 or i7 processor, with 8GB or 16GB LPDDR4X RAM, and up to 1TB of internal Gen 4 PCIe SSD storage. Programmable buttons, a large, 12″ screen with a stylus and hot-swappable batteries will challenge any user to maximize the capabilities of this device.

Auto-Sensing Touch Technology, Wet and Glove

The UR-120 is designed for the medical industry, where users are always wearing gloves or constantly washing their hands. Our auto-sensing touch technology can help prevent the frustration that can happen when hands aren’t dry enough for a conventional touch screen or the annoyance of taking off gloves, only to put them back on after use.

*Specifications are representative. Specific product technology may be different than indicated.

RUGGEDNESS
WaterproofIP67, IEC60529-2013
Drop RatingMIL-STD-810H-2014, Method 516.6, Procedure IV, 5ft to Marble
Shock RatingMIL-STD-810G, Method 516.6, Procedure I, 40G
Vibration RatingMIL-STD-810G-2014, Method 514.6, Procedure I
ESD Protection8KV Touch, 15KV Air
SYSTEM
ProcessorIntel Tiger Lake i5-1145GRE, Quad-Core, Base 1.5GHz, Burst 4.1GHz, 8M Smart Cache
Options:
Intel Tiger Lake i7-1185G7E, Quad-Core, Base 1.8GHz, Burst 4.4GHz, 12M Smart Cache
GPUIntel® Iris® Xe Graphics, Max Frequency to 1.35GHz
Memory8GB LPDDR4X
Options:
16GB LPDDR4X
OSWindows 11, 64bit
Options:
Windows 10 Pro/LTSB, 64bit
Linux (Custom Project)
Storage256GB Gen 4 PCIe SSD
Options:
512GB Gen 4 PCIe SSD
1TB Gen 4 PCIe SSD
SecurityIntel AES New Instructions
TPM 2.0
Intel vPro
DISPLAY
Screen Size11.6″ IPS
Resolution1920 x 1080 (16:9)
Brightness400 NIT
Options:
1000 NIT, Sunlight Readable
View Angle+/- 85°
Contrast Ratio1000:1
TouchscreenCapacitive 10-Point Multi-Touch
Hardened Chemical Glass
Ultra Optical Bonding
User Replaceable Anti-Glare Film
Auto-sensing, Configurable to Wet and Gloved Touch
COMMUNICATIONS
Ethernet1x 10/100/1000M RJ45 Port
Wi-FiIntel AX210 Wi-Fi Chipset, Wi-Fi 6
802.11 a/b/g/n/ac/ax 2.4G & 5G
BluetoothBluetooth v5.2
4G LTE (Option)Sierra EM7455, M.2 Interface
4G: Cat-6, Frequency Bands: B1-B5,B7,B8,B12,B13,B20,B25, B26, B29, B30, B41
3G: HSPA+, UMTS, Frequency Bands: B1, B2, B3, B4, B5, B8
CE, FCC, GCF, IC, NCC, PTCRB
Verizon, T-Mobile, AT&T Certified
5G (Option)TBD
GPSuBlox NEO-M10
GPS L1C/A, SBAS L1C/A, QZSS L1C/A, GLONASS L1OF, BeiDou B1, Galileo E1B/C
–167 dBm Navigation Sensitivity
Cold Start No More than 40s
I/O INTERFACE
SensorsGyroscope
Ambient Light Sensor
G-Sensor
Compass
Audio1x Built-In Microphone
2x Internal 4ohm 1.5W Speakers
CameraFront Camera: 2MP
Rear Camera: 5MP with LED Flash
Options:
Front Camera: 5MP
Ports1x USB 3.0 @ 1000mA Type C
1x USB 3.0 @ 1500mA Type A
1x USB 2.0 @ 1000mA Type A
1x Docking Connector (24 pin, 19V DC, 1x USB 3.0)
1x Audio Jack (3.5mm, 4 Pole, MIC input)
1x Nano SIM Slot
1x Internal PoGo Pin Connector (USB 3.0)
ButtonsPower Button
Volume +, Volume –
Windows Button
2x Programmable Buttons
Barcode Reader (Option)Newland NLS-EM3596, Built-In 1D/2D
Stylus (Option)Digitizer Pen
MECHANICAL
ChassisFront: Mg, Back: Plastic, Feet: Double-Injection Molding
Options:
Anti-Microbial Glass/Chassis
Dimensions318.8 x 206.8 x 20.5mm
Weight1.3kg
LEDPower
Battery
SSD
POWER
AC Adapter19V DC 5.25A Output, 110-240V AC Input, Standard US Plug
Options:
Multi-Nation Plugs
Medical AC Adapter
Battery2x Hot-Swappable Battery
7.7V 3896mAH, 30Wh Each
Battery charging time: 5 hours
ENVIRONMENTAL
Operating Temp-10°C to 55°C
Storage Temp-20°C to 60°C
Humidity1% to 95% Non-condensing, -30° To 60°C, 5 Cycles Of 48 Hours
Thermal Shock-30° to 70°C Within 5 Minutes, No Operating
REGULATORY
CertificationFCC, CE, IEC60601-1
BatteryCE, UL, MSDS, CB, IEEE, UN38.3, IATA
