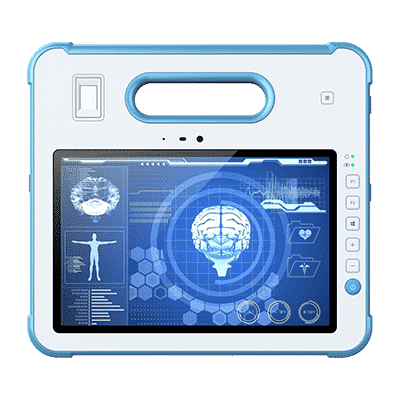

10.1″ Medical Rugged Tablet PC | MD–100K

The MD-100K Medical Grade Tablet PC is purpose-built for demanding healthcare environments that require both performance and durability. Featuring a 10.1″ high-resolution IPS LCD screen and powered by the Intel® Kaby Lake Core™ i7-7Y75 processor, this tablet ensures fast, efficient computing for medical applications. Its rugged construction, including IP65 water and dust protection and MIL-STD-810G shock resistance, provides reliable operation in even the toughest conditions. Certified for medical-grade safety and electromagnetic compatibility, the MD-100K is ideal for applications such as telehealth, patient monitoring, and medical response units. With OEM/ODM customization options, including NFC, RFID, smart card readers, and more, it offers adaptable solutions to meet the unique needs of healthcare professionals.

Key Features

  • 10.1″ IPS LCD Screen (1920 x 1200 Resolution)
  • Intel® Kaby Lake Core™ i7-7Y75 Processor
  • Windows 10 Pro (Optional: Windows 10 Enterprise, Linux)
  • IP65 Water & Dust Protection
  • 4ft Drop / Shock Protection (MIL-STD-810G)
  • Sunlight Readable LCD Display (800nits)
  • Intel AX210 Wi-Fi 6E, Bluetooth 5.2, 4G LTE (Optional)
  • One Internal and One Hot Swappable Battery
  • Certified for medical-grade safety and electromagnetic compatibility
  • Optional Add-Ons: NFC Module, RFID Module, Smart Card Reader Module, Barcode Reader, Fingerprint Reader, Capacitive Stylus
Inquiries Data Sheet

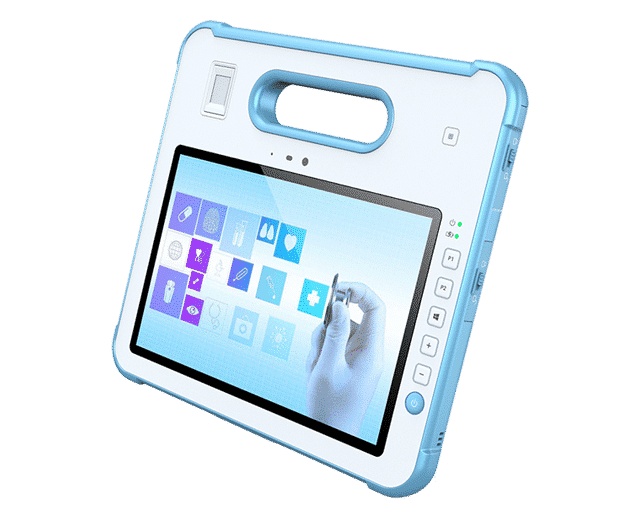

Unparalleled Power with Intel® Kaby Lake & Amber Lake Processors

The MD-100K Rugged Medical Grade Tablet PC delivers top-tier performance with options for the Intel® Kaby Lake Core™ i7-7Y75 or Intel® Amber Lake Y Core™ i5-8200Y processors. Designed for speed and efficiency, this rugged tablet is ideal for handling complex medical applications like patient data management, telemedicine, and electronic medical records. Its 10.1″ high-resolution IPS display (1920 x 1200) ensures crisp, clear visuals, and the device’s multitouch, water-splash-resistant screen provides a responsive interface even in challenging conditions. With up to 16GB LPDDR3 memory and M.2 SSD storage (up to 1TB), the MD-100K guarantees smooth performance for demanding healthcare and industrial tasks.

Rugged Design for Demanding Environments

Engineered to withstand harsh conditions, the MD-100K comes with IP65-rated water and dust protection, and MIL-STD-810G certification, providing 4ft drop and shock resistance. Whether in a hospital, an ambulance, or an outdoor medical response unit, this rugged tablet ensures durability and reliability in any environment. Its sunlight-readable 800-nit display guarantees excellent visibility in bright outdoor settings, making it ideal for medical teams on the move.

Flexible Operating Systems: Windows & Linux

The MD-100K supports Windows 10 Pro and Linux operating systems, giving healthcare and industrial professionals the flexibility to choose the platform that best suits their workflow. Whether you need the extensive features of Windows or the customizable open-source nature of Linux, the MD-100K offers seamless integration with your existing systems, making it an adaptable solution for a variety of applications.

Advanced Connectivity for Real-Time Communication

Stay connected and efficient with the MD-100K’s advanced connectivity features, including Intel® Wi-Fi 6E AX210, Bluetooth 5.2, and optional 4G LTE and GPS modules. These connectivity options ensure that medical teams can communicate and access critical data in real-time, whether they are in a hospital setting or responding to emergencies in the field.

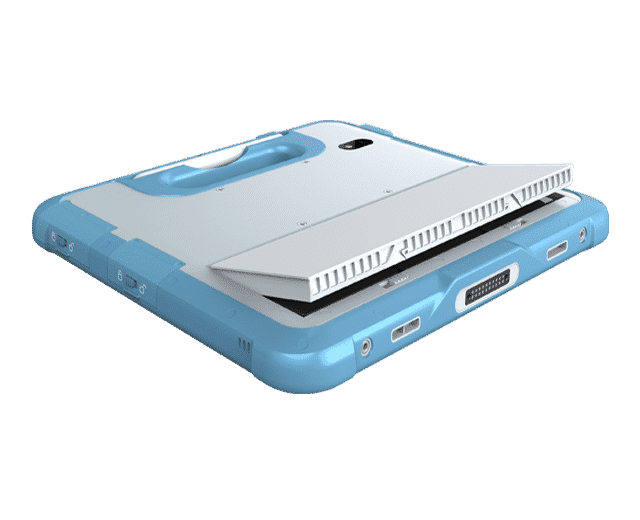

Hot-Swappable Dual Battery System

The MD-100K is equipped with an internal battery and a hot-swappable dual battery system, ensuring continuous use throughout extended shifts. This system minimizes downtime by allowing healthcare professionals to quickly replace the battery without shutting down the tablet, ensuring uninterrupted performance in critical moments.

Customizable with Modular Add-Ons

Tailor the MD-100K to your specific needs with a range of optional add-ons. Available modules include a barcode reader, smart card reader, fingerprint scanner, NFC, and RFID. These add-ons enhance functionality, enabling secure patient data management, medication tracking, and efficient asset management.

Certified for Medical-Grade Safety

The MD-100K is certified to meet stringent medical-grade safety standards, including IEC 60601-1 and IEC 60601-1-2. These certifications ensure that the tablet can be used safely in sensitive medical environments, such as operating rooms, ICUs, and patient monitoring systems, while maintaining compliance with essential electromagnetic compatibility and safety standards.

*Specifications are representative. Specific product technology may be different than indicated.

RUGGEDNESS
WaterproofIP-65
Drop RatingMIL-STD-810G, 4ft to Plywood on 26 Corners
Shock RatingMIL-STD-810G, Method 516.6, Procedure I, 40g 11ms
Vibration RatingMIL-STD-810G, Method 514.6, Procedure I Category 4, Category 20, Category 24
ESD Protection8KV Touch, 15KV Air
SYSTEM
ProcessorKaby Lake Core i5-7Y54, Base 1.2GHz, Burst 3.2GHz, 4 MB Intel Smart Cache
Options:
Kaby Lake Core i7-7Y75, Base 1.3GHz, Burst 3.6GHz, 4 MB Intel Smart Cache
GPUIntel® HD Graphics 505, Base 200MHz, Burst 750MHz, Max Video Memory 8GB
Memory4GB LPDDR3-1866
Options:
8GB LPDDR3-1866
16GB LPDDR3-1866
OSWindows 10 Pro 64bit
Options:
Windows 10 Enterprise LTSB 2016
Windows 10 Enterprise LTSC 2019
Linux (Custom Projects)
Storage128GB SSD M.2 Interface
Options:
256GB SSD M.2 Interface
512GB SSD M.2 Interface
1TB SSD M.2 Interface
SecurityIntel AES New Instructions
Intel vPro (i7-7Y75)
Options:
TPM 2.0

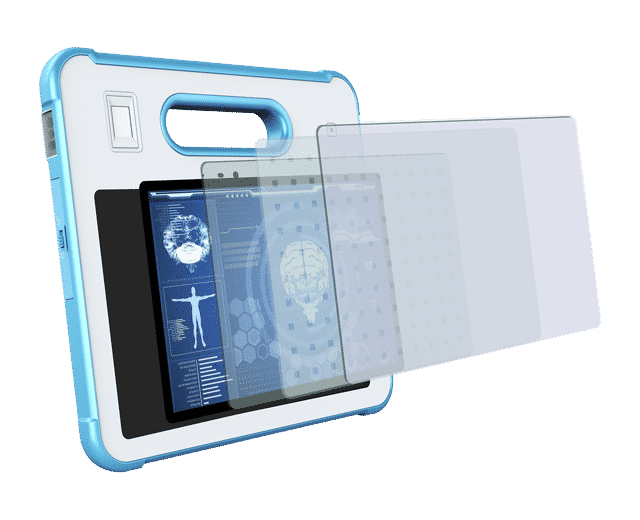

DISPLAY
Screen Size10.1″ IPS
Resolution1920×1200
Brightness400 NIT
Options:
800 NIT, Sunlight Readable
View Angle+/- 85°
Contrast Ratio800:1
TouchscreenCapacitive 10-Point Multi-Touch
Auto-sensing, Configurable to Wet and Gloved Touch
Chemical Harden Cover Glass
Multi Touch Mode (Includes Water Splash)
Glass Coating Options:
Anti-Reflective
Anti-Glare
Anti-Fingerprint
Anti-Polarization
COMMUNICATIONS
Wi-Fi802.11 a/b/g/n/ac Dual-Band 2.4G & 5G
BluetoothBluetooth v4.2
4G LTE (Option)Sierra EM7455, M2 Interface, Bands: B1-B5, B7, B12, B13, B20, B25, B26, B29, B30, B41
GPS (Option)Ublox 7 GPS Module, GPS/QZSS L1 C/A, GLONASS L1 FDMA, SBAS: WAAS, EGNOS, MSAS
Navigation Update Rate Up to 10 Hz, Cold Start No More than 40s
NFC (Option)SM-MSN10-C02, Compliant with ISO/IEC 14443 A/B, 15693/18092, Distance 2.5mm
I/O INTERFACE
SensorsGyroscope
Light Sensor
Compass
Audio1x Built-In Microphone
1x Internal 8ohm 1W speaker
CameraFront Camera: 2MP
Rear Camera: 5MP with Auto Focus

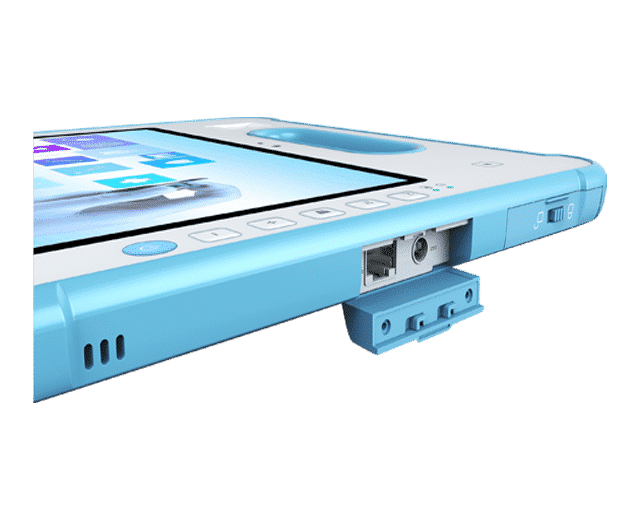

Ports1x USB 3.0 @1.5A Type A
1x HDMI Output: Type A
1x Audio Jack (3.5mm, 4 Pole, MIC input)
1x DC Jack 5.5mm OD Jack

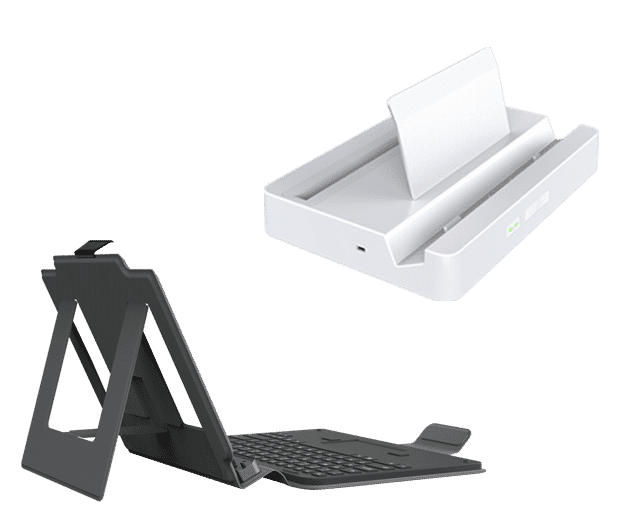

1x Docking Connector (12V DC Input, 2x USB)
1x RJ45 Port: 10/100/1000M
1x Micro SIM Slot
ButtonsPower Button
Windows Button
Volume +, Volume –
2x Programmable Buttons
Barcode Scan Button (with Barcode Option)
RFID (Option)OMNIKEY® 5127CK-Mini, ISO 14443 A/B, ISO 15693

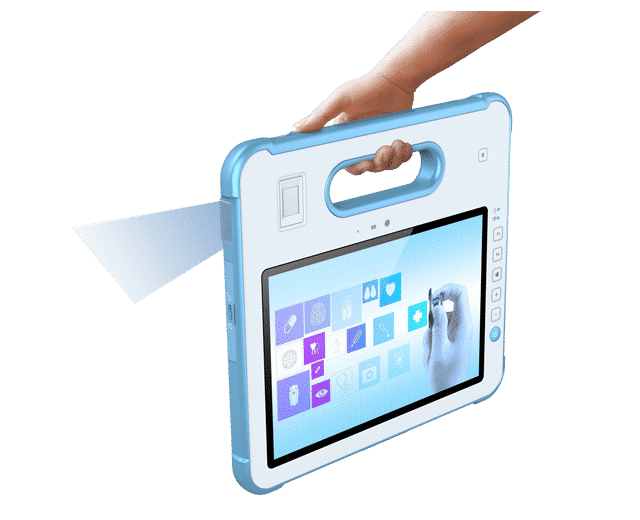

Barcode Reader (Option)Newland NLS-EM3296, Built-In 1D/2D
Smart Card Reader (Option)OMNIKEY® 3121, EMV 2000 Level 1, ISO 7816, CCID
Fingerprint Reader (Option)Capacitive, Compliant to FIPS 201
StylusCapacitive Stylus
Options:
Digitizer Pen, eGalaxPen (B Type), Active Capacitive Coupled, Pressure Level: 256~1024, Double Click, Hoover, Palm Rejection, High Accuracy for Legal Signature, Compliant to Microsoft Pen Protocol v.2.0
MECHANICAL
ChassisPlastic + TPU
Options:

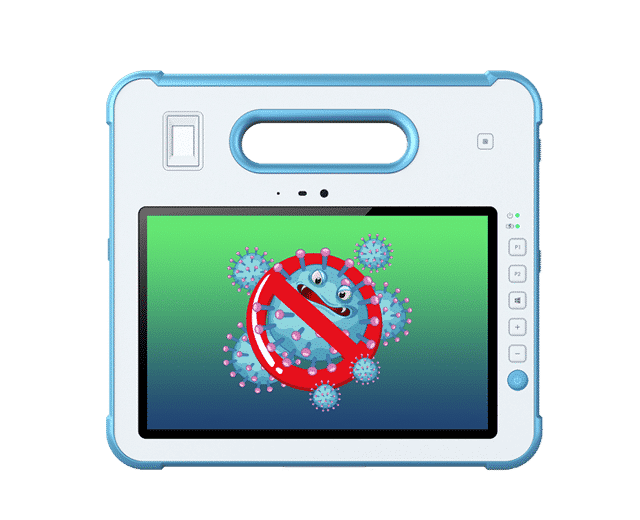

Anti-Microbial Medical Chassis
Dimensions280 x 256 x 23mm
Weight1.1kg
POWER
AC Adapter19V DC 3A Output, 100-240V AC Input, Standard US Plug
Options:
Medical AC Adapter, 12V DC 3.3A Ouput, 100-240V AC Input
Multi-Nation Plugs
Battery40Wh Battery, Li-on Polymer, Hot Swappable, Voltage Meter
Internal 3.5Wh Battery
ENVIRONMENTAL
Operating Temp0°C to 50°C
Storage Temp-20°C to 60°C
Humidity10% to 90%
RoHSCompliant
REGULATORY
CertificationFCC 47 CFR PART 15B & PART 15C, IEC60601-1, IEC 60601-1-2:2014, IEC62133, MSDS, UN38.3, EN 55032, EN 301489, EN 55035, EN 300328, EN 55032, EN 303413, EN 50663, EN61000, EN 62368-1

Product Options

*MOQ for some options.

SYSTEM
ProcessorKaby Lake Core i7-7Y75, Base 1.3GHz, Burst 3.6GHz, 4 MB Intel Smart Cache
Memory8GB LPDDR3-1866
16GB LPDDR3-1866
OSWindows 10 Enterprise LTSB 2016
Windows 10 Enterprise LTSC 2019
Linux (Custom Projects)
Storage256GB SSD M.2 Interface
512GB SSD M.2 Interface
1TB SSD M.2 Interface
SecurityTPM 2.0
DISPLAY
>Brightness800 NIT, Sunlight Readable
Glass Coating OptionsAnti-Reflective
Anti-Glare
Anti-Fingerprint
Anti-Polarization
COMMUNICATIONS
4G LTESierra EM7455, M2 Interface, Bands: B1-B5, B7, B12, B13, B20, B25, B26, B29, B30, B41
GPSUblox 7 GPS Module, GPS/QZSS L1 C/A, GLONASS L1 FDMA, SBAS: WAAS, EGNOS, MSAS
Navigation Update Rate Up to 10 Hz, Cold Start No More than 40s
NFCSM-MSN10-C02, Compliant with ISO/IEC 14443 A/B, 15693/18092, Distance 2.5mm
I/O INTERFACE
RFIDOMNIKEY® 5127CK-Mini, ISO 14443 A/B, ISO 15693
Barcode ReaderNewland NLS-EM3296, Built-In 1D/2D
Smart Card ReaderOMNIKEY® 3121, EMV 2000 Level 1, ISO 7816, CCID
Fingerprint ReaderCapacitive, Compliant to FIPS 201
StylusDigitizer Pen, eGalaxPen (B Type), Active Capacitive Coupled, Pressure Level: 256~1024, Double Click, Hoover, Palm Rejection, High Accuracy for Legal Signature, Compliant to Microsoft Pen Protocol v.2.0
MECHANICAL
ChassisAnti-Microbial Medical Chassis
POWER
AC AdapterMedical AC Adapter, 12V DC 3.3A Ouput, 100-240V AC Input
Multi-Nation Plugs

Documentation

MD-100K Data Sheet-2024-10-31Download
MD-100M Tech DrawingDownload
