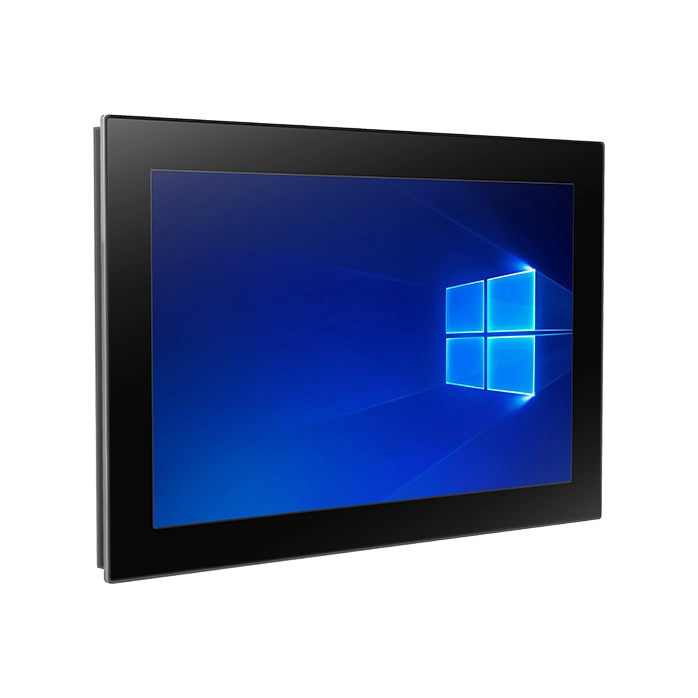

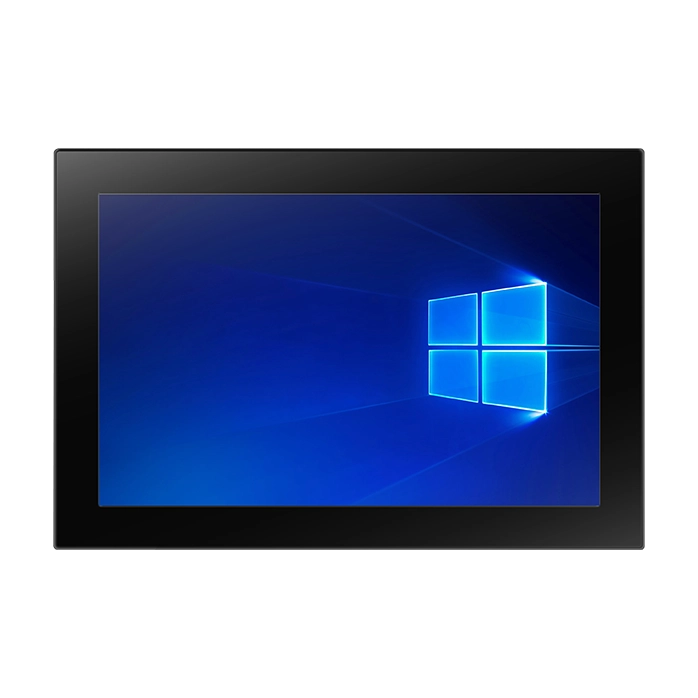

10.1″ Industrial Panel PC | PPC-4710
The PPC-4710 is an all-in-one frameless tablet style slim industrial Panel PC with 1280 x 800 high resolution lPS touch screen. The system is equipped with high performance NXP i.MX8M mini Quad-core ARM A53 processor. The dual Gigabit Ethernet with PoE (Power over Ethernet) option and 24V DC/AC power input support make it perfect for industrial control, building automation, HMl, vending machines and interactive loT applications.
Key Features
NXP i.MX8M Mini Application Processor with Long Life Cycle Support
Dual Gigabit Ethernet Ports, One Support 802.3at PoE Option
1280 x 800 IPS 10.1" LCD, 3mm Tempered Glass PCAP Touch Screen
PCIe Expansion Support Google's Edge TPU for High-performance ML
12-24V DC / 24V AC Power Input or PoE Power Input with Optional Module
Support Android 9/10, Yocto Embedded Linux and Debian Linux
Specifications
RUGGEDNESS
SYSTEM
DISPLAY
COMMUNICATIONS
POWER
I/O INTERFACE
MECHANICAL
ENVIRONMENTAL
RUGGEDNESS
| Protection | Front Panel IP65 Compliant |
SYSTEM
| Processor | NXP i.MX8M Mini, 4 x ARM Cortex-A53 @ 1.8GHz, 1 x ARM Cortex-M4 @ 400MHz |
| Platform | ARM Cortex-A53 |
| Memory | On-board 2GB LPDDR4, Up to 4GB |
| Storage | On-board iNAND Flash (8GB Default), 1 x Micro SD Slot, 265K EEPROM with Write Protect Control |
| OS | Yocto Embedded Linux (Kernel Version 5.10), Debian, Android |
DISPLAY
| Screen Size | 10.1" TFT Active Matrix LED Backlight |
| Resolution | 1280 x 800 |
| Brightness |
350 nits Optional: 1000 nits |
| Touch Type | Projected Capacitive Touch Screen |
| Touch Controller | I2C |
| Display Interface | LVDS |
COMMUNICATIONS
| Ethernet | 1 x 10/100/1000Mbps GbE with PoE Option, Optional: Second 10/100/1000Mbps PCle GbE |
| Wi-Fi | WiFi 802.11 b/g/n |
| Bluetooth | Bluetooth v4.0 |
POWER
| Power Button | On l/O Panel |
| Input Voltage |
12V-24V DC or 24V AC Via Barrel Connector or Terminal Block 802.3at PoE Option |
I/O INTERFACE
| Audio | 1 x Mono Class D Speaker Out, 2W (4Ω), 2 (R/L) x Line Out Header |
| Watchdog Timer | Built-in |

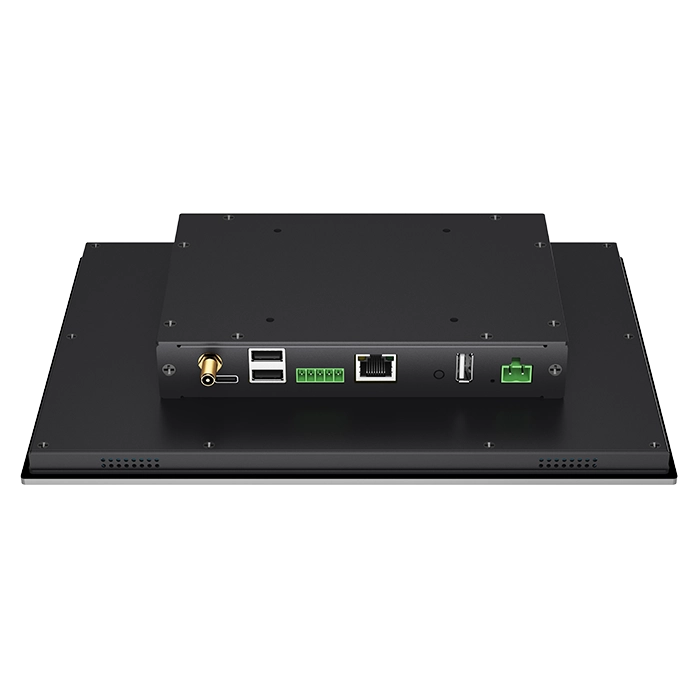

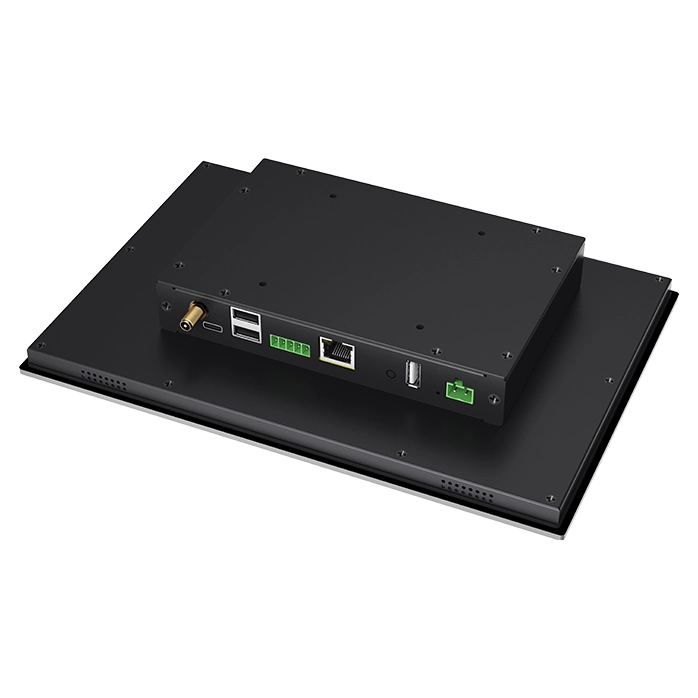

| I/O Ports | 1 x RS232/RS485 Via Terminal Block 2 x GPlO Via Terminal Block 2 or 3 x USB 2.0 Type A 1 x USB Type C 2.0 OTG/Host 1 x M.2 Type E PCle Option |
MECHANICAL
| Enclosure Material | Aluminum, Steel Enclosure |
| Enclosure Color | Black |
| Dimensions | 258 x 175 x 41 mm |

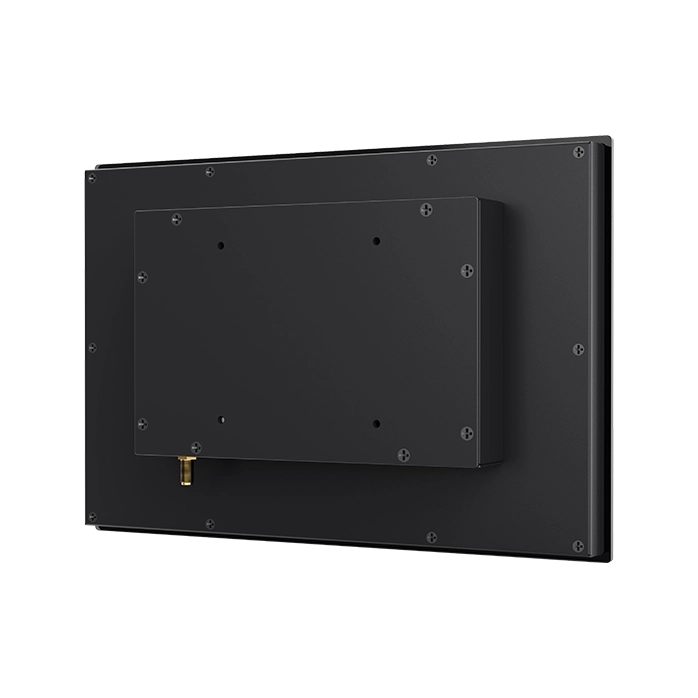

| Mounting Option | Panel Mount, VESA Mount |
| Cooling | Fanless |
ENVIRONMENTAL
| Operation Temperature | 0°C to 60°C |
| Storage Temperature | -20°C to 70°C |
| Humidity | 10% to 95% @ 40°C Non-condensing |
