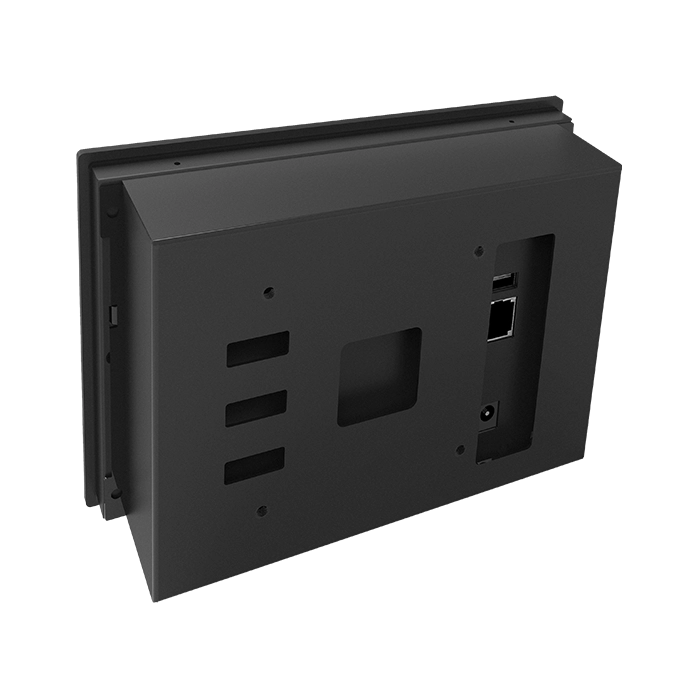

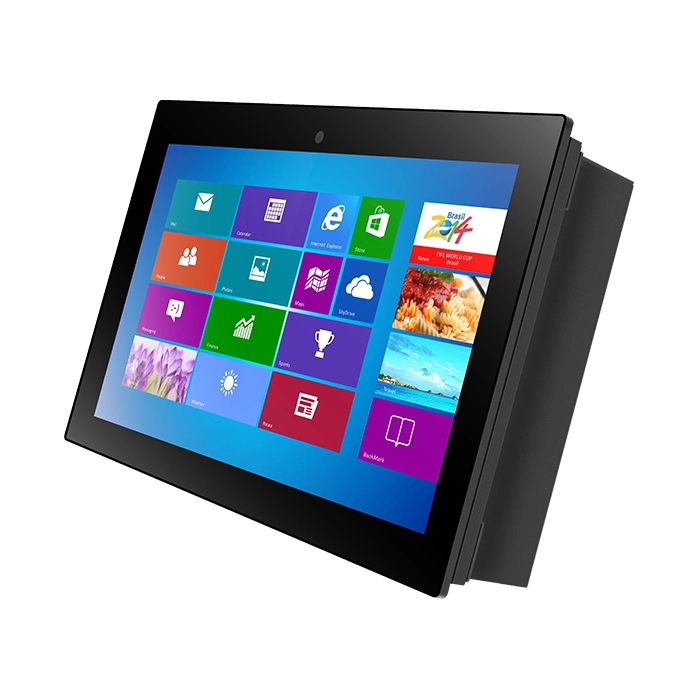

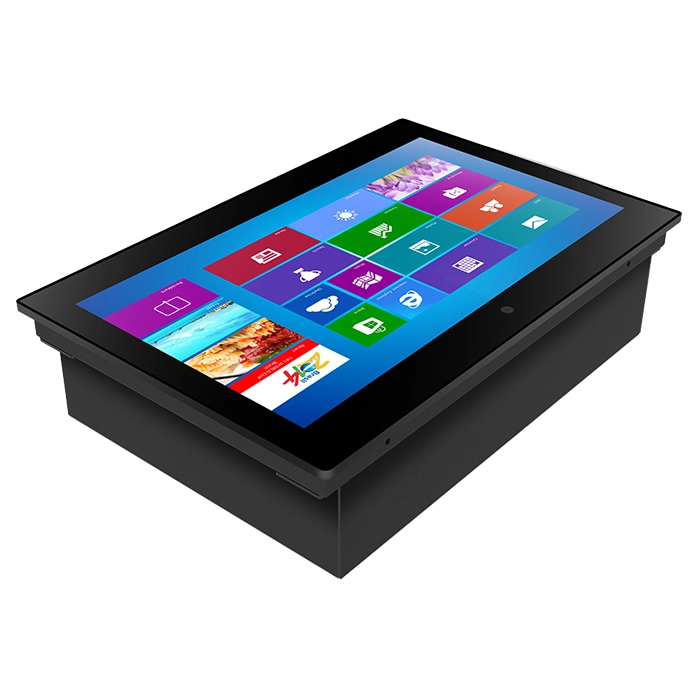

7” Wall Mount Industrial PoE Panel PC / HMI with 3mm Edge to Edge Tempered Glass Touch Panel, Android and Embedded Linux Support The PPC-4107 is a 7″ PoE Panel PC. It is designed for an industrial wall to mount touch panel applications with a 1024 x 600 frameless touch screen. The system equips with high-performance NXP i.MX6 application processor. The on-board Gigabit Ethernet supports 802.3af (PoE Power over Ethernet), making it perfect for home and building automation, HVAC monitoring and control, and interactive IoT applications.
The PPC-4107 features an easy-clean, scratch-proof IP65 protected 3mm tempered front glass. The multi-touch edge to edge frameless rugged front panel provides protection of the LCD against heat, impact, and chemicals. It is also a great alternative to traditional open frame PCs for integrating into existing industrial machines, control cabinets, kiosks, and cutting-edge full glass touch panel industrial design.

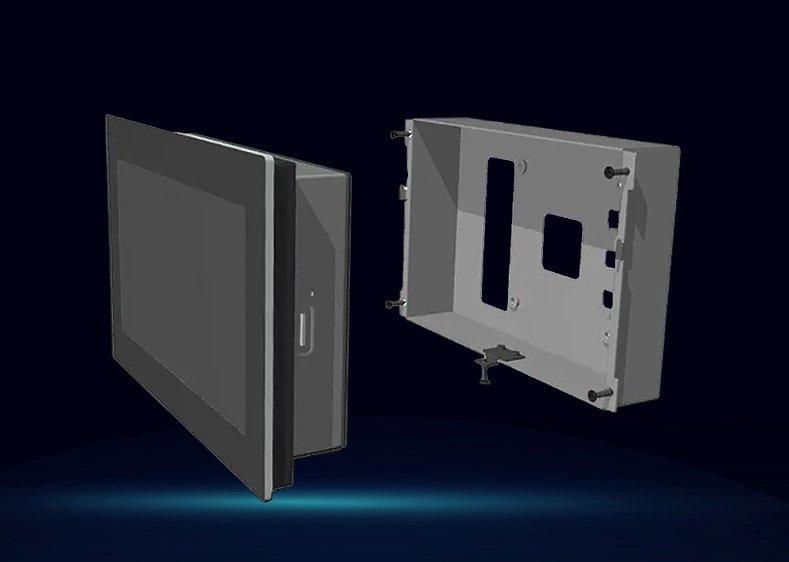

We provide a custom-designed wall mount bracket and VESA mount solution to meet different type of installation and integration environments.

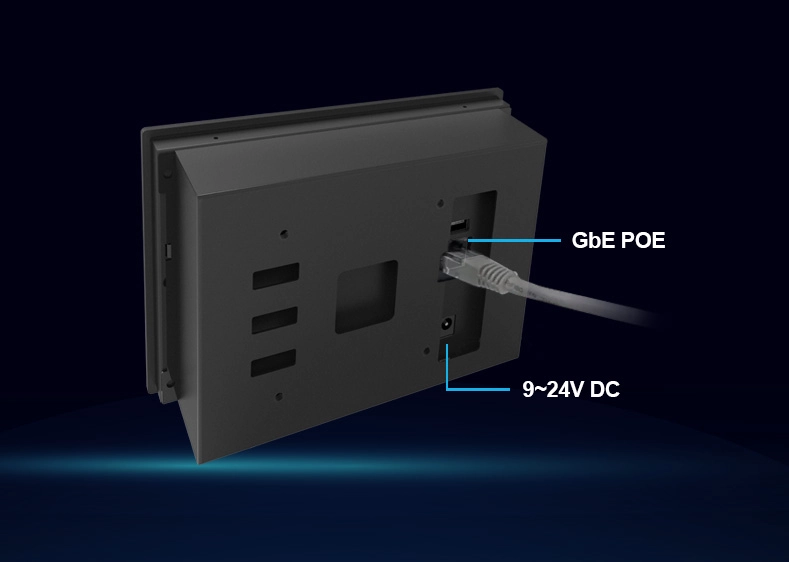

Provides Power over Ethernet (PoE) IEEE 802.3af and 9-24V DC wide-range voltage power inputs.
| Protection |
3mm Tempered Glass Edge to Edge, Front Panel IP65 Compliant |
| Processor | NXP i.MX6 1GHz Dual Lite or Quad |
| Platform | ARM Cortex A9 |
| Memory | 1GB On-board DDR3 |
| Storage | On-board NAND Flash (8GB Default) |
| OS | Support Android 6.0.1, Embedded Linux 3.14, Debian 8 |

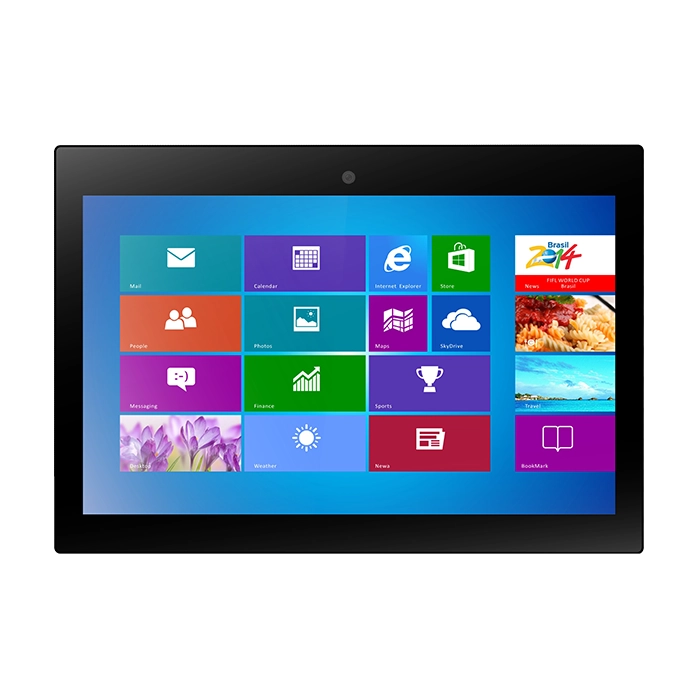

| Screen Size | 7" TFT Active Matrix LED Backlight |
| Resolution | 1024 x 600 |
| Brightness | 350 nits |
| View Angle | 75° (Left), 75° (Right), 70° (Top), 75° (Bottom) |
| Contrast Ratio | 800 : 1 |
| Backlight Lifetime | 15,000 Hr (Typical) |
| Touch Type | Projected Capacitive Touch Screen |
| Touch Controller | I2C |
| Display Interface | LVDS |
| Ethernet | 1 x Gigabit Ethernet, RJ45, Support 802.3af PoE Power Input |
| Wi-Fi | On-Board WiFi 802.11 b/g/n |
| Bluetooth | Bluetooth BLE |
| Input Voltage | 9V-24V DC or PoE |
| Audio | 2 x 1W Speaker, Option of Front or Rear |
| Watchdog Timer | Built-in |
| RTC | Support RTC Backup Battery |

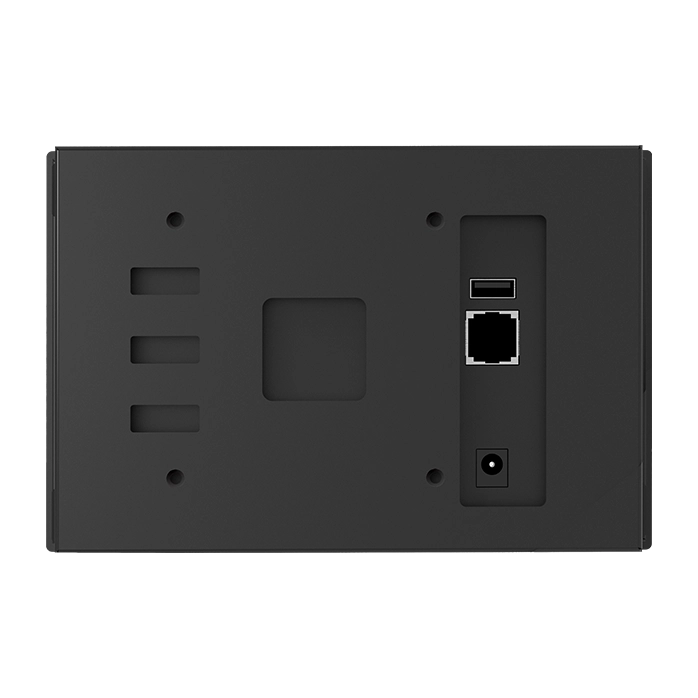

| I/O Ports | 2 x RS232 1 x RS485/CAN 1 x SPI 1 x I2C and Up to 10 x GPlOs Via Internal Header 1 x USB 2.0 Type A |
| Enclosure Material | Steel + Aluminum |
| Enclosure Color | Black or White |
| Dimensions | 190 x 126 x 40.5 mm |
| Mounting Option | Wall Mount or 75 x 75mm VESA Mount with Bracket |
| Cooling | Fanless |
| Operation Temperature | 0°C to 60°C |
| Storage Temperature | -20°C to 70°C |
| Humidity | 10% to 90% @ 40°C Non-condensing |
